Description

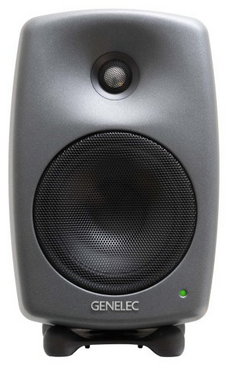

Genelec 8430A IP SAM™ Active Monitor

The 8430A is the world’s first AoIP studio monitor, allowing reference-quality monitor performance to integrate directly into your IP workflow.

Total compatibility

The explosion in the growth of networked audio has been huge, and the 8430A’s connectivity allows direct monitoring of AoIP streams, with all the precision and clarity that audio professionals have come to rely on from Genelec. Based on the Ravenna IP protocol, with full AES67 support for total compatibility, the 8430A is the natural choice for today’s sophisticated production environment.

Optimised listening

As a fully-fledged Smart Active Monitor, the 8430A integrates tightly with our GLM calibration software to fully optimise your IP-based monitoring set-up for your listening environment. This means you can always be confident of producing mixes that translate beautifully, even if you are working in challenging broadcast environments with only rudimentary acoustic treatment.

Specifications:

Maximum sound pressure level: 104 dB

Free field frequency response: 45 Hz – 23 kHz (-6 dB)

Accuracy of frequency response: ± 1.5 dB (58 Hz – 20 kHz)

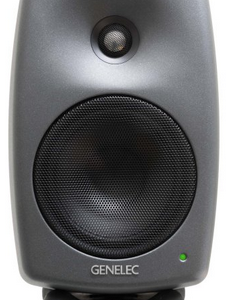

Drivers: Bass Ø 130 mm, 51/8 inch + Treble Ø 19 mm, 3/4 inch metal dome + DCW™

Amplifier power per channel: 50 W Bass + 50 W Treble (both Class D)

Dimensions H x W x D: 299 x189 x 178 mm, 1125/32 x 77/16 x 7 inch, with Iso-Pod™
Weight 5.5 kg / 12.1 lb

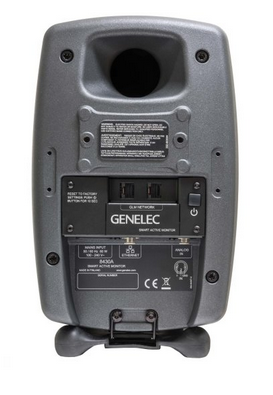

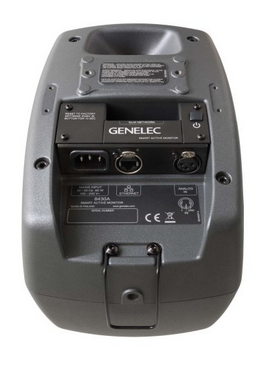

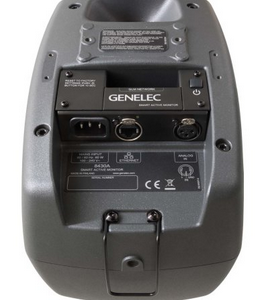

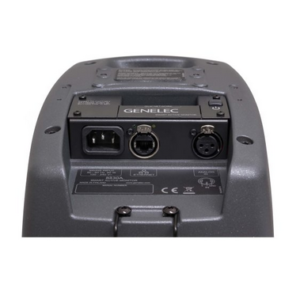

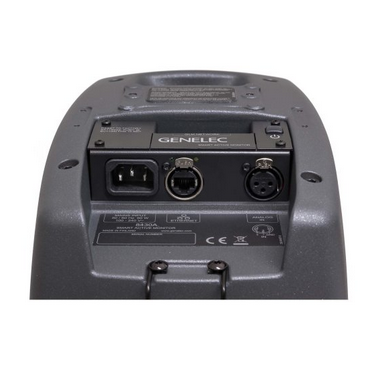

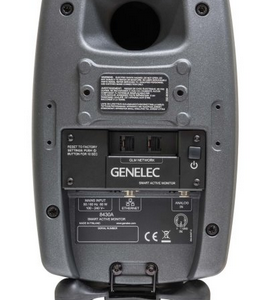

Audio Connectors: XLR analogue input, RJ45 audio-over-IP input and management interface, 2 x RJ45 GLM Network Management and control system GLM™

Colour options: Dark Grey
