KEF Ci3160RL-THX

Description

KEF Ci3160RL-THX In wall Speaker

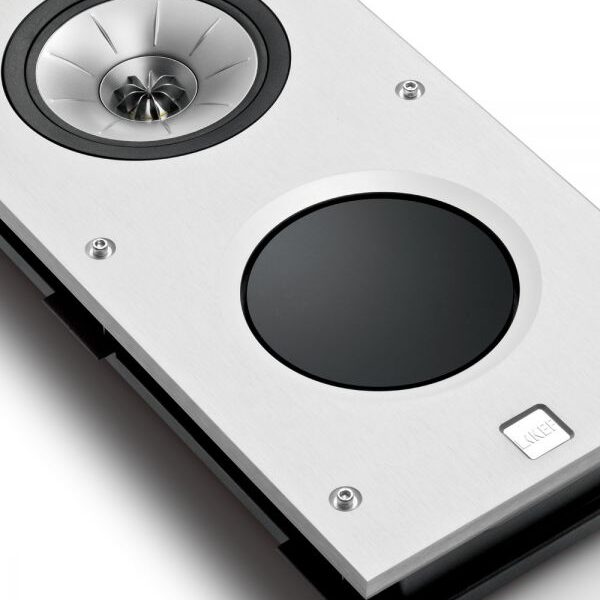

The KEF Ci3160RL-THX is crafted with a massive aluminum baffle to eliminate vibration and is the perfect platform for the 160mm aluminum cone Uni-Q with tangerine waveguide, and two 160mm woofers. Capable of bi-wire and bi-amplifier connections the Ci3160RL-THX delivers on the performance promise of all KEF R Series speakers.

Overview

The ultimate in custom installed Extreme Home Theatre, the formidable new Ci R Series has the jaw-dropping acoustic capabilities of the classic KEF floor stander it’s named after, with all the drama and emotional intensity of full theatre sound quality. The Ci R Series consists of an in-ceiling speaker that can be combined with one of two in-wall models, and a sensational new powered subwoofer. As you might expect, its towering performance sets a new standard for custom installed speakers.

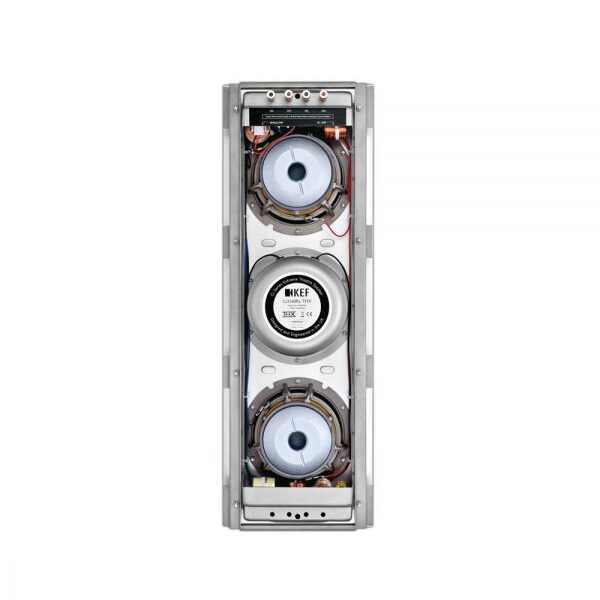

The Ci3160RL-THX is crafted with a massive aluminum baffle to eliminate vibration and is the perfect platform for the 160mm aluminum cone Uni-Q with tangerine waveguide, and two 160mm woofers. Capable of bi-wire and bi-amplifier connections the Ci3160RL-THX delivers on the performance promise of all KEF R Series speakers.

Technical Specifications:

NOMINAL IMPEDANCE: 4 Ohms
SENSITIVITY: 90dB (2.83V/ 1m)
FREQUENCY RESPONSE: 45Hz – 28kHz (±6dB) open backed
CROSSOVER FREQUENCIES: 340Hz, 2.5kHz
DRIVE UNITS:
LF: 2 x 160mm (6.5 in.)
MF: 160mm (6.5 in.)
HF: 25mm (1 in.) Uni-Q
RECOMMENDED AMPLIFIER POWER: 30 – 180W
PRODUCT EXTERNAL DIMENSION (H X W X D): 680 x 230 x 105.7 mm (26.77 x 9.06 x 4.16 in.)
CUT-OUT DIMENSIONS (H X W): 660 x 209mm (25.98 x 8.23 in.)
MOUNTING THICKNESS
Ceiling Thickness (Maximum) : 40mm (1.58in.)
Ceiling Thickness (Minimum) : 6mm (0.24in.)
MOUNTING DEPTH FROM SURFACE: 99mm (3.9 in.)
