Description

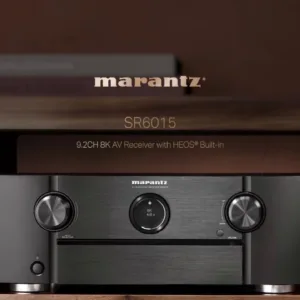

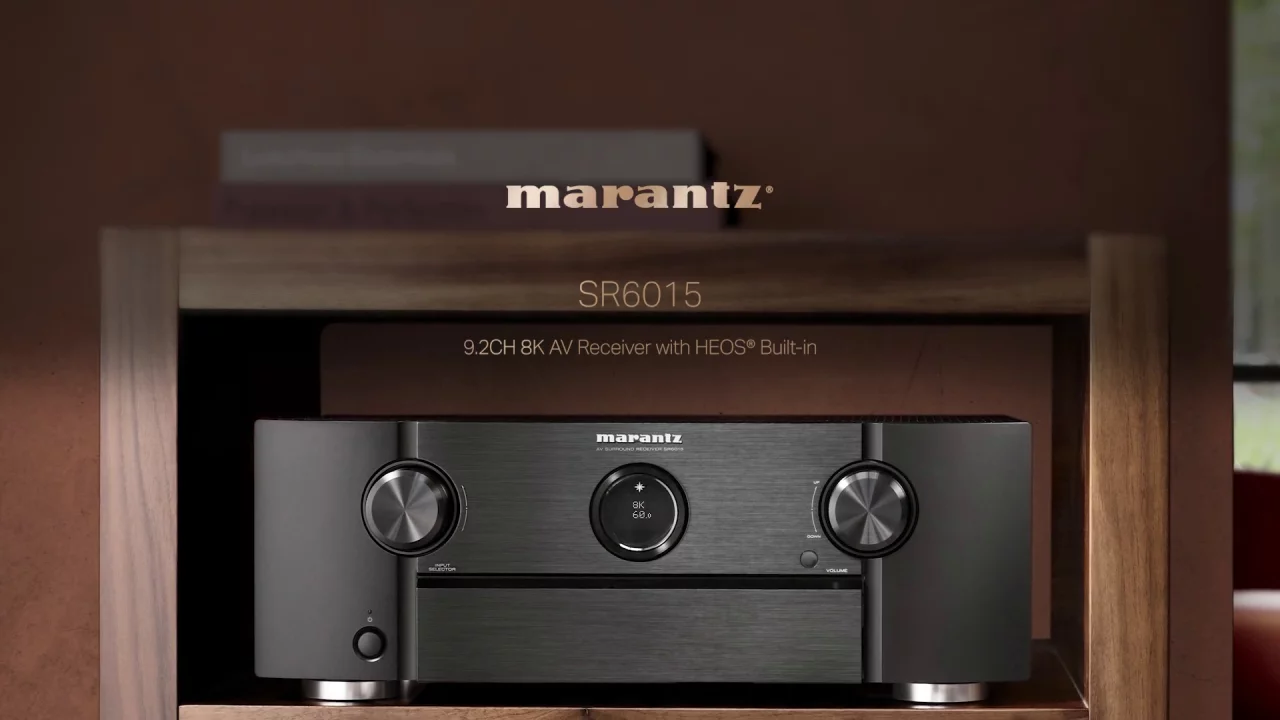

Marantz SR6015
9.2 Channel 8K AV Receiver with HEOS® Built-in and Voice Control
Drive exquisitely detailed home cinema with the Marantz SR6015 9.2 channel 8K AV receiver. Enjoy the most musical sound in all your entertainment.
8K or 4K/120Hz pass-through video quality
With the latest HDMI technology, enjoy 8K/60Hz or 4K/120Hz quality video from your 8K devices. 8K upscaling is available on all 7 HDMI ports.
Performance, power and connectivity
9.2 channel discrete amplifier to deliver the most dynamic content
Get the most advanced object-based audio formats
Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™ and IMAX® Enhanced processing for you to enjoy immersive, multi-dimensional audio.
Uncompressed 3D audio from your smart TV
Through the main HDMI output, connect your TV with Enhanced Audio Return Channel (eARC) HDMI support, to allow uncompressed and object-based 3D audio formats directly from your smart TV app to your AV receiver.
Specifications:
Multichannel Surround
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / No |
| DTS Neo:X / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby ProLogic Ilz / Dolby Surround | No / Yes |
| Auro 3D | No |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancements
| Discrete Power Amplifier | Yes |
| Copper Plated Chassis | No |
| Power Transformer: Toroidal / EI | EI |
| Current Feedback Topology | Yes |
| Hyper Dynamic Amplifier Modules (HDAM) | Yes |
| Pure Direct | Yes |
| Gold plated RCA terminals | Yes |
| Clock Jitter Reducer | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Audyssey APP Support | Yes |
| Compressed Audio Enhancer: MDAX2 | Yes |
Network
| HEOS Multi-room and Streaming | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Network Audio Sharing | Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless Playback | Yes (FLAC, WAV ,ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet radio | Yes (TuneIn) |
| Spotify* | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Compatible with Remote APP for Smart Phones | Marantz 2016 AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back / Front | 7 / 0 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Video Conversion Analog -> HDMI | Yes |
| Analog to HDMI Scaling | 480i/576i up to 8K 60/50 |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| HDMI 2.1: 8K/60Hz / 4K/120Hz | Yes / Yes |
| HDMI 2.0: 3D / 4K / CEC / ARC | Yes / Yes / Yes / Yes / No |
| Enhanced ARC | Yes |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes (update) |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes (update) / Yes (update) / Yes (update) |
| 3D Signal Pass-Through | Yes |
| 8K signal pass-through / scaling / GUI overlay | Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel | Yes |
| Auto LipSync | Yes |
Multi-Room / CI
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes / Yes |
| Multi-Room Zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes /Yes / Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | port hole |
| Graphic User Interface – GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | No |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep / Timer | Yes |

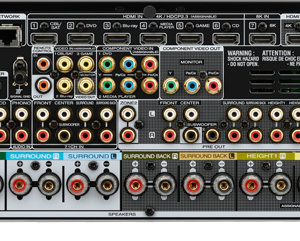

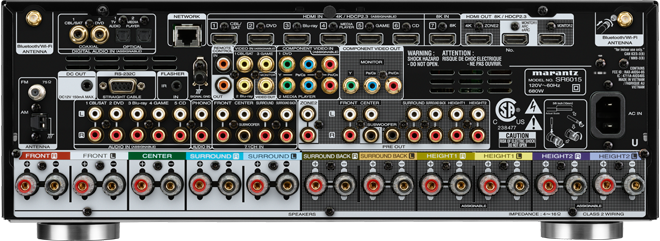

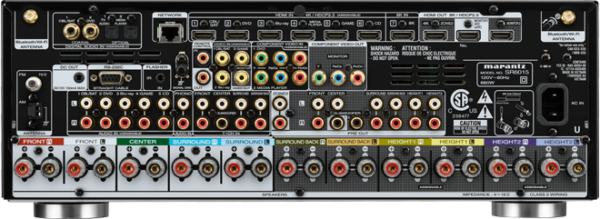

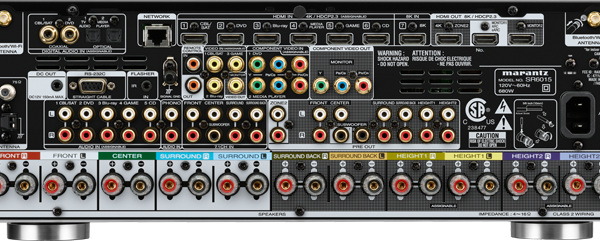

Inputs/Outputs
| Composite In / Out | 3+1 / 1 |
| Component In / Out | 2 / 1 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| Analog In / Out | 5+1 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: Analog / Digital | 1 / No |
| Multichannel Pre Out | Yes (11.2) |
| Subwoofer Out | 2 (independant) |
| 7.1 Multichannel Input | Yes |
| Speaker Terminal: Gold Plated Screw / Regular Screw | Yes / No |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Bi-Amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | Yes / Yes / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
Amplifier
| Number of poweramps | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | 110 W |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | No |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 150 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 220 W |
| 70% Guarantee | Yes |
General
| Metal Front Panel | Yes |
| System Remote Control | RC042SR |
| Pre-Programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 680 |
| Power Consumption No-Sound (ECO on/off) in W | 60 W / 100 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 3.5 |
| Network Control On Consumption in W | No |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches |
17.3 x 15.7 x 6.3 (17.3 x 15.7 x 9.0) 【 17.3 x 15.3 x 6.3 】 |
| Weight in lbs. | 28.2(TBD) |
