Description

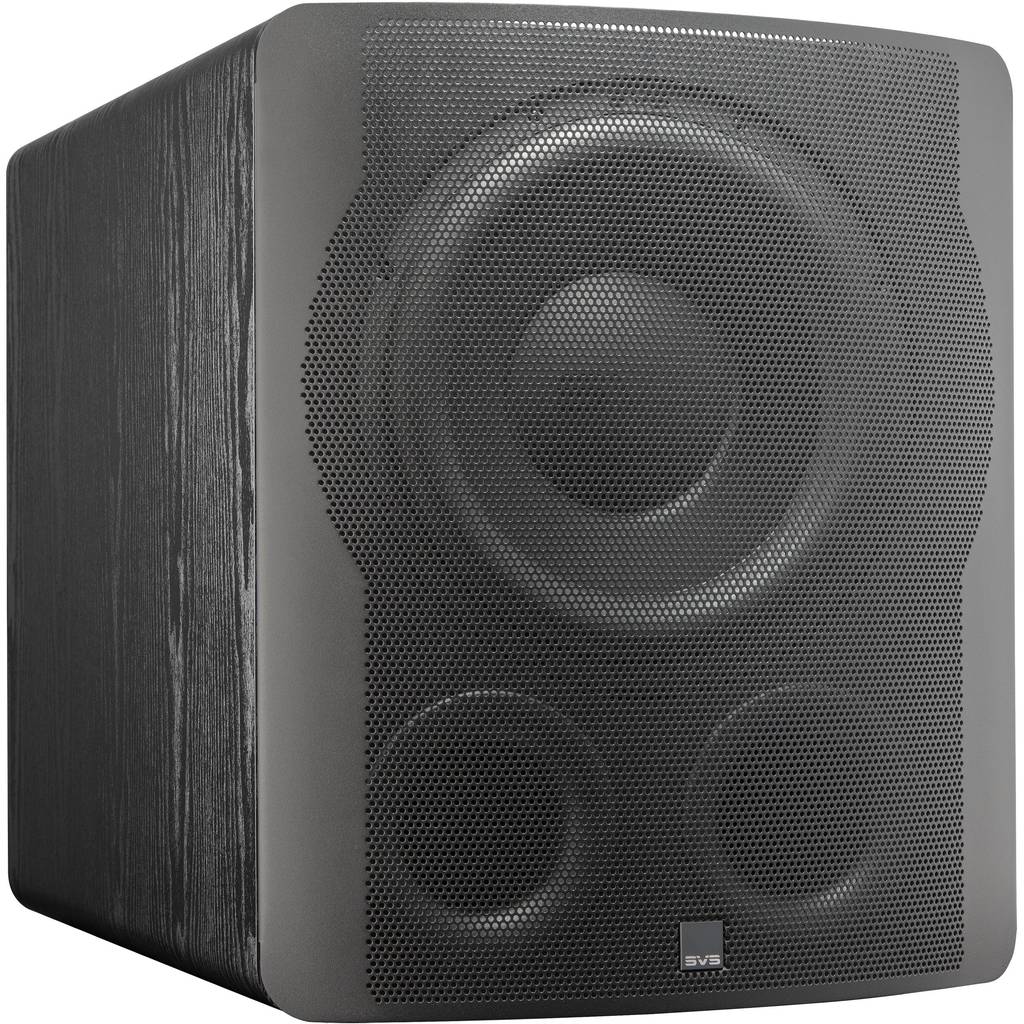

SVS PB-3000 Subwoofer
An Earth-shaking output, subterranean low frequency extension, The crisp speed in transients and pinpoint control, the PB-3000 delivers reference subwoofer performance at a breakthrough price. Features all-new, first-ever 13-inch high-excursion SVS driver and 800 watts RMS, 2,500+ watts peak power Sledge amplifier with fully discrete MOSFET output for crushing bass below the threshold of human hearing without sacrificing refinement. PB-3000 is the first SVS subwoofer optimized with dual ports for maximizing airflow, driver motion and amplifier power, while eliminating the potential for port turbulence. Breathtakingly forceful and refined bass hits new lows.
Crushing output and extreme low frequency extension down to 16Hz without sacrificing accuracy and control,Featuring technology from the SVS 16-Ultra Series and 4000 Series, winners of nearly every industry and media award as the top subwoofers worldwide, the PB-3000 unleashes breathtaking output and extreme low frequency extension with pinpoint accuracy and control. The newest ported cabinet SVS model combines the most sophisticated SVS subwoofer technology ever developed with trailblazing innovations to set a new standard for subwoofer performance.
All New First Ever 13-inch High-Excursion SVS Driver – Iron Fist Inside a Velvet Glove.
Completely new 13-inch high-excursion SVS driver delivers punishing levels of low frequency output, while maintaining crisp speed in transients by stopping and starting on a dime with precision. An aluminum vented cone with exceptional stiffness to mass ratio and a proprietary injection molded extreme-excursion surround ensure flawless pistonic motion for pinpoint control and accuracy.
Flat edge wound split-wind voice coil within the motor assembly provides effortless, on-demand power at high excursion, while reducing mass and improving overall driver efficiency. The result is room-shaking output with amazingly precise response when the music, movie or other content demands it most.
Dual ferrite magnet motor assembly weighing nearly 25lbs generates massive amounts of current to produce extreme driver excursion with precise control for the deepest, most accurate and authoritative bass possible from a 13-inch driver.
Lightweight and rigid aluminum vented cone with composite fiber dustcap generates massive output with pinpoint accurate frequency response.
Long-throw parabolic surround and proprietary injection molded gasket ensure longevity and allow extreme excursion for room-energizing bass.

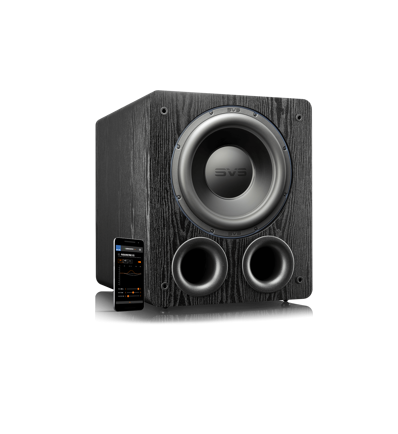

PB-3000 Smartphone App
3000 Series subwoofer app is the most convenient way ever to control volume, access multiple DSP functions and program custom presets for one-touch tuning optimized for music, movies, gaming, and more. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more from your favorite seat.
The SVS subwoofer app also allows advanced customization so you can name your subwoofer for easy preset switching, choose the subwoofer standby mode and reset the subwoofer to factory settings. Bluetooth connectivity allows full control, even when the subwoofer is out of sight and bi-directional feedback shows adjustments in real time on both the app and rear panel subwoofer interface.
Technical Specifications:
16-260 Hz +/- 3 dB (standard mode)
18-260 Hz +/- 3 dB (sealed mode)
Roll-off slope specifically optimized to take maximum advantage of available room gain
2-meter ground plane away from reflective structures (quasi-anechoic)
Premium Black Ash
Protective non-resonant steel mesh grille
Front-firing 13 inch high-excursion SVS driver
Rear-mounted amplifier with Intelligent Control Interface (ICI)
Dual 3.5-inch ports
Screw-in rubber feet
Robust Medium Density Fiberboard (MDF) cabinet construction
Dimensions (w/ grille): 21.9” (557mm) H X 18.3” (465mm) W X 26” (660mm) D
Dimensions (without grille): 21.9” (557mm) H X 18.3” (465mm) W X 23.5” (596mm) D
Shipped Dimensions: 31.3” (795mm) H 23.1” (587mm) W X 26.5” (674mm) D
Weight (unboxed): 82.2 lbs. (37.3 kg)
Shipped Weight: 97 lbs. (44 kg)
Driver Specifications:
All New Proprietary 13” high-excursion SVS 3000 Series subwoofer driver
SVS first flat edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency. Built around a premium grade 2” polyimide impregnated fiberglass former for maximum thermal conductivity.
Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic linearity.
Nickel-plated high-tension spring terminals.
Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control.
Amplifier Specifications:
Massively powerful Sledge 800-watt continuous Class D design with 2,500+ watts of Peak Power.
High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well beyond reference listening levels.
High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is the most advanced subwoofer processor available for perfect audio reproduction.

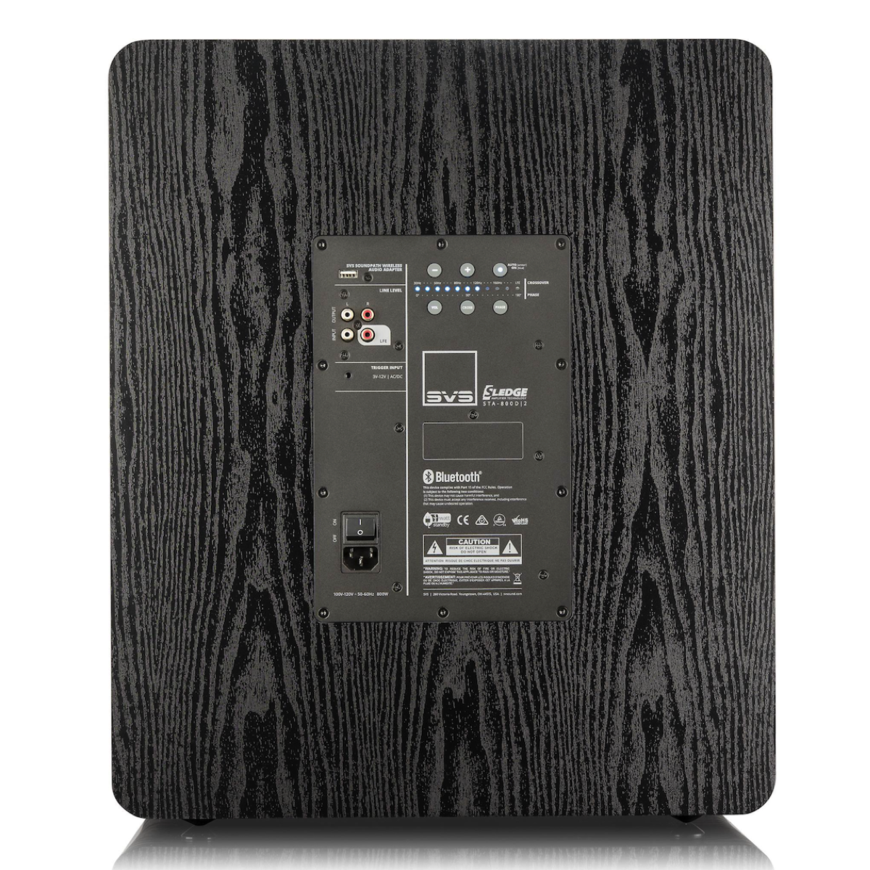

All new rear panel Intelligent Control Interfacel (ICI) user interface with bright back-lit controls.
Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
Input impedance 16kohm (unbalanced RCA).
Green 0.5-watt low standby power consumption.
RoHS compliant, lead-free construction, world-wide safety certifications.
SVS App Specifications:
The most powerful and flexible Bluetooth controlled subwoofer DSP app, works with both iOS and Android operating systems.
Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
Single tap adjustment for controlling variable port tuning with standard and sealed modes.
Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
Easy-to-follow tutorial provides clear guidance for all functions.
Room-Shaking Power. Subterranean Extension. Uncompromising Sound Quality.
