Description

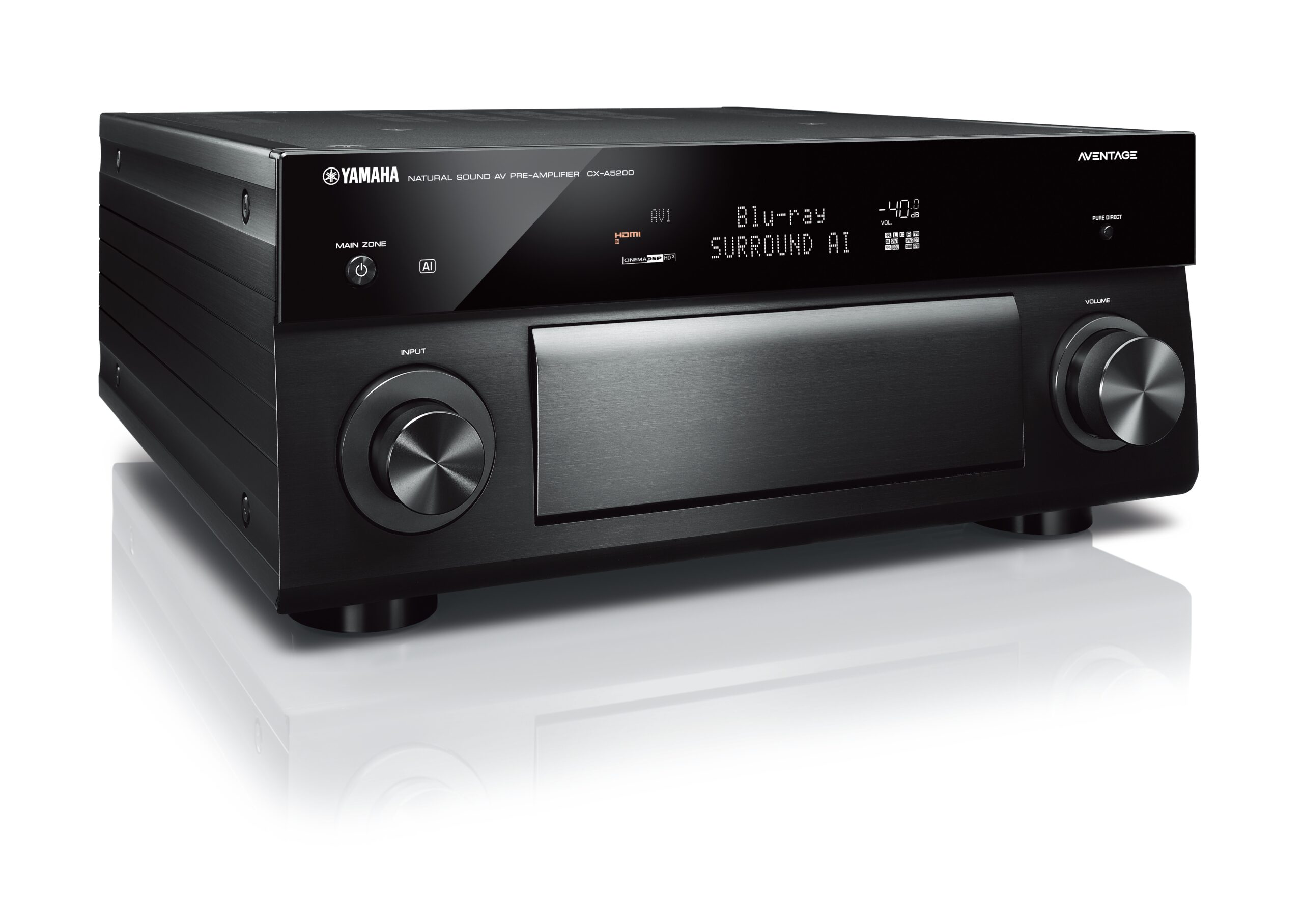

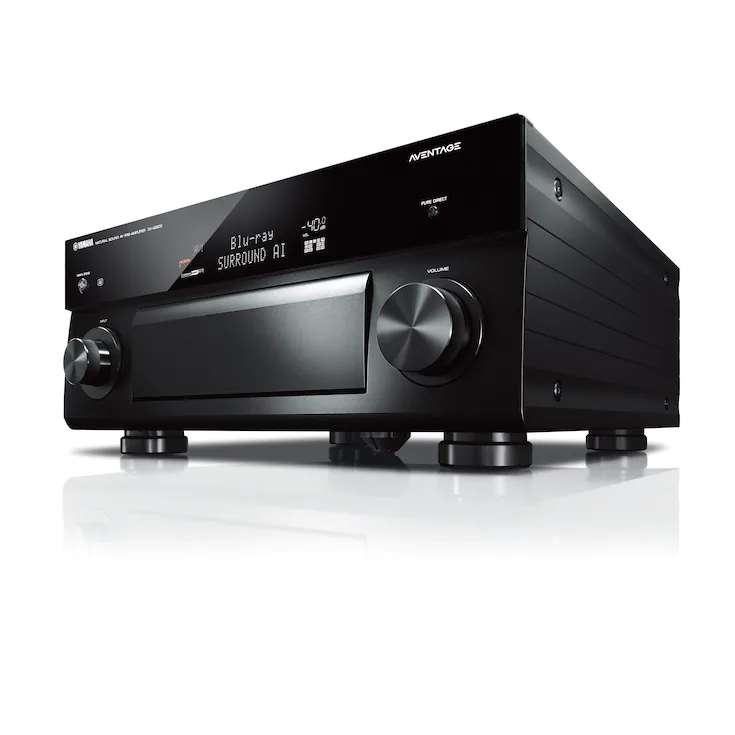

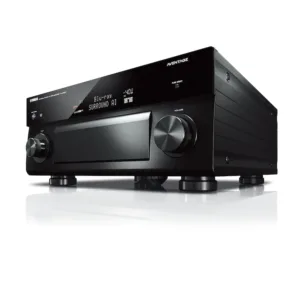

YAMAHA CX-A5200 AVENTAGE 11.2-Channel AV Preamplifier with MusicCast
A breakthrough in home cinema
> 11.2-ch with balanced XLR outputs
> Dolby Atmos® and DTS:X™ up to 7.2.4-channel processing
> Dual ESS SABRE PRO ES9026PRO Ultra DAC
> Wi-Fi®, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room
> Pandora®, Spotify, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more
> HDMI with HDCP 2.3 (7 in/3 out)
> 4K Ultra HD, HDR10, Dolby Vision™, Hybrid Log-Gamma and BT.2020
> Voice control with Alexa and Google Assistant devices or Siri via AirPlay 2
> Surround:AI™ technology automatically optimizes the sound in real-time
> YPAO R.S.C. with 3D, 64-bit precision EQ calculation and angle measurement
> Phono input
AVENTAGE Separates
AVENTAGE Separates represent the ultimate in home entertainment and Yamaha establishes a new benchmark in performance and innovation with the CX-A5200 pre-amplifier and MX-A5200 power amplifier.
SURROUND:AI
The AI technology built into the DSP analyses the scene and then creates the optimal surround effect to reproduce it with the greatest impact, This AI instantaneously analyses scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes surround effect in real time, The result is a compelling sense of expressive power beyond conventional sound field effects that deliver the most profound entertainment experience available today.
A New Generation in Sound. Dolby Atmos and DTS:X
Nothing captivates an audience quite like the grandeur of the big screen and the thrill of cinema surround sound. Object-based audio brings this sense of immersion to breathtaking new heights through the use of overhead speakers and precise location of sounds not just around the listener, but on a 3D plane. Together with Dolby and DTS, Yamaha brings this latest development in cinema surround sound into the home with astonishing realism and unsurpassed performance.
A New Dimension in Sound
In addition to conventional channel-based audio, it is possible to create a 3D space in which separate acoustic elements can move freely – giving a sensation of the motion of ‘objects’ above the viewer’s head that realizes the filmmaker’s vision. Improved CINEMA DSP HD3 features signal processing algorithms to heighten this sense of realism further. With high-performance processors, home theatre performance is maximized – accurately reproducing a new dimension of realism with a rich sense of presence unlike any system you’ve ever experienced.
Balanced Connections and High-quality XLR Terminals
Electrical noise is an inherent issue with cabling due to connection with other AV components, the connections between them and from other sources of external noise. To ensure that the CX-A5200 is not affected by this distortion, it uses balanced connections that are highly noise resistant – the same type as generally used in professional audio equipment. Even the RCA unbalanced connection uses a ground sensing transmission method that achieves simple balanced transmission, XLR terminals allow for the use of long cables. The CX-A5200 also allows balanced audio input connection to high-end source components such as CD players.
A World of Music
Explore a world of music with music streaming services* built-in. Conveniently synchronised to your music streaming accounts that you access from your computer or smart device, there has never been a better way to discover new artists or listen to your favourite tunes. *Streaming service availability varies by region. *Streaming services may change or be discontinued without notice.
Product Specifications
Surround: AI
CINEMA DSP: HD3
DSP Programs: 34
Dialog Level Adjustment
Virtual Presence Speaker: (with Virtual Rear Presence Speakers)
Virtual Surround Back Speaker
Dialogue Lift: (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP: (Virtual CINEMA FRONT)
Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS:X, DTS-HD Master Audio.
Audio Features:
Audio File Format: MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Compressed Music Enhancer, High-resolution Music Enhancer,
YPAO multi-point measurement: R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
Adaptive DRC (Dynamic Range Control), Initial Volume & Maximum Volume Setting, A.R.T. Wedge,
Audio Delay: 0-500 ms
DA Converter: ESS 384 kHz / 32-bit SABRE PRO Premier DAC™ ES9026PRO x 2 (for all channels incl. presence speakers)
Video Features:
4K Ultra HD Pass-through and upscaling: 4K / 60p, 4:4:4
HDMI 3D passthrough
HDMI eARC: Via Firmware Update
HDMI Audio Return Channel
Component upconversion
HDMI Up-scaling: Analogue to HDMI / HDMI to HDMI
Video adjustment, Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync

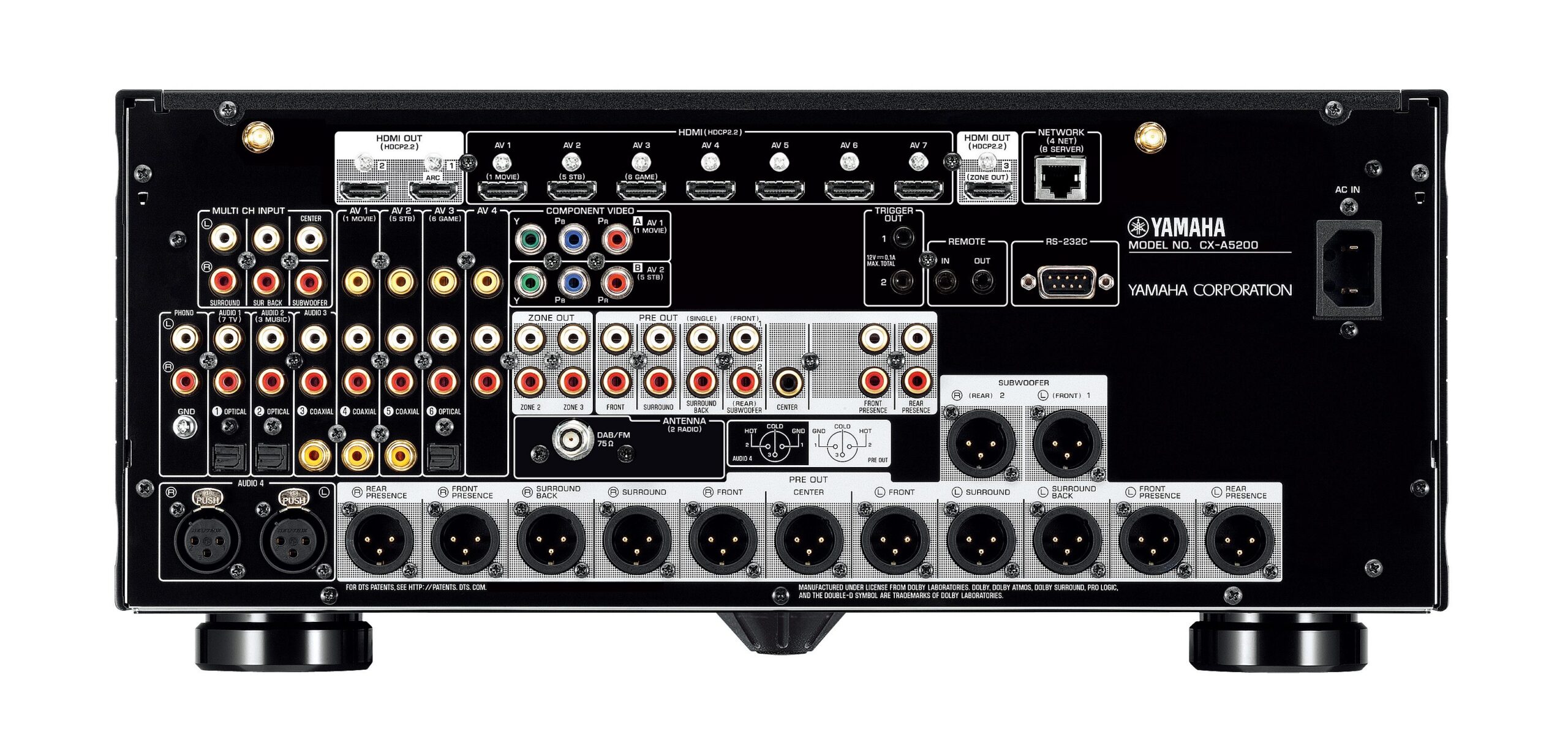

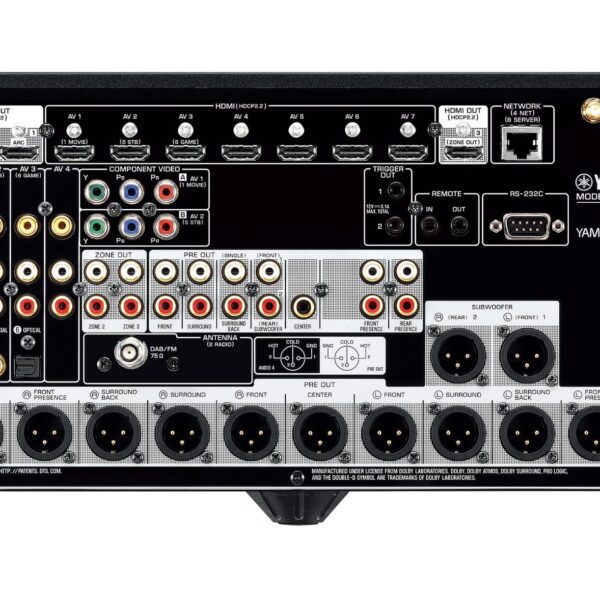

Connectivity:
MusicCast Surround
HDMI Input/Output: 7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input: USB Memory, Portable Audio Player
Network Port
Wi-Fi: 2.4 / 5 GHz
AirPlay: AirPlay 2 via firmware update
Bluetooth
Front AV Input: USB / Analogue Audio
Digital Audio Input/Output: Optical,
Digital Audio Input/Output: Coaxial
Analog Audio Input/Output: XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 0
Phono Input, XLR Terminals,
Component Video Input: 2 No.s
Composite Video Input: 4 No.s
Preout: XLR Balance: 11.2 ch, RCA Unbalance: 11.2 ch
Headphone Output
FM/AM Tuner: FM Only.
DAB Tuner: Availability varies by region
Dimensions (W x H x D): 435 x 193 x 474 mm (with antenna up: 435 x 270 x 474 mm); 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 10-5/8” x 18-5/8”)
Weight: 15.2 kg; 33.5 lbs.
