YAMAHA MX-A5200

Description

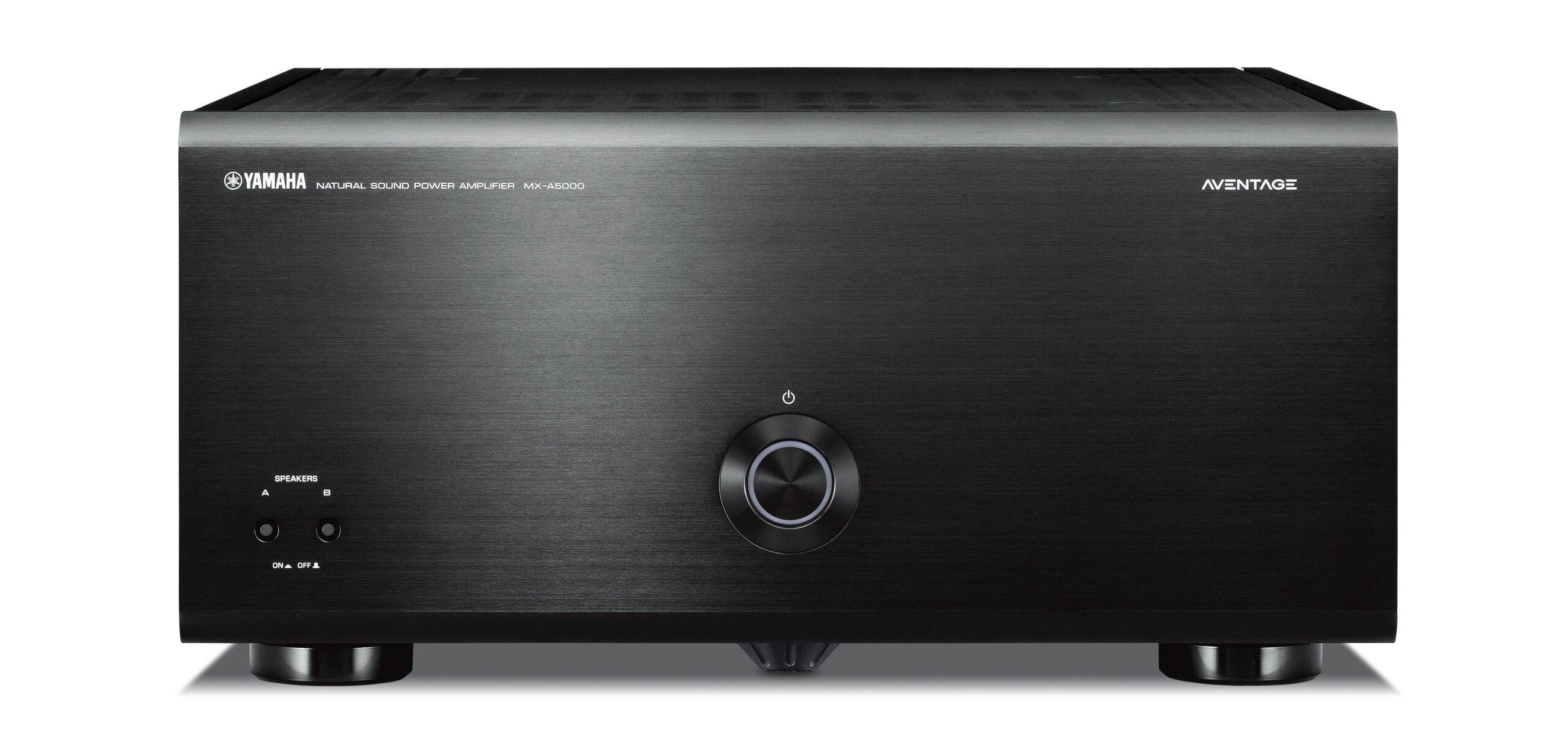

YAMAHA MX-A5200 Power Amplifier

Exhilarating home cinema

> AVENTAGE 11-channel power amplifier
> Supports Bridge-Tied Load (BTL) configuration for 2 x front channels
> 27,000 uF custom block capacitors
> Bi-amping capability with channel selector
> High-quality gold-plated speaker terminals
> Noise-resistant XLR balanced connections

AVENTAGE Separate Components

AVENTAGE Separate Components represent the pinnacle in exhilarating home entertainment. In pursuit of the ultimate in home cinema, Yamaha establishes a new benchmark in performance and innovation. Introducing the CX-A5200 pre-amplifier and MX-A5200 power amplifier.

Power and Presence

The MX-A5200 offers 11 x discrete channels of amplification with flexible configuration options – delivering an impressive combination of power and quality. Enjoy the flexibility of a multi-zone system or immerse yourself in exhilarating surround sound using any combination of 11-channels.

Ultimate Performance with BTL

To further enhance power capacity, the MX-A5200 supports Bridge Tied Load (BTL) configuration for the front 2 channels. This allows for a major improvement to the front speaker performance.

Perfectly Symmetrical

Precisely planned, circuit-routed and designed with a symmetrical power amplifier layout, the MX-A5200 achieves ideal channel separation with left and right sides being both physically and electrically isolated. The design also greatly improves signal-to-noise ratio and achieves an expansive sound stage.

Superior Connection

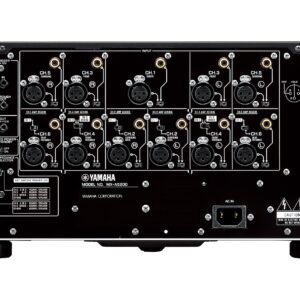

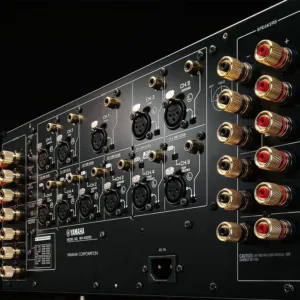

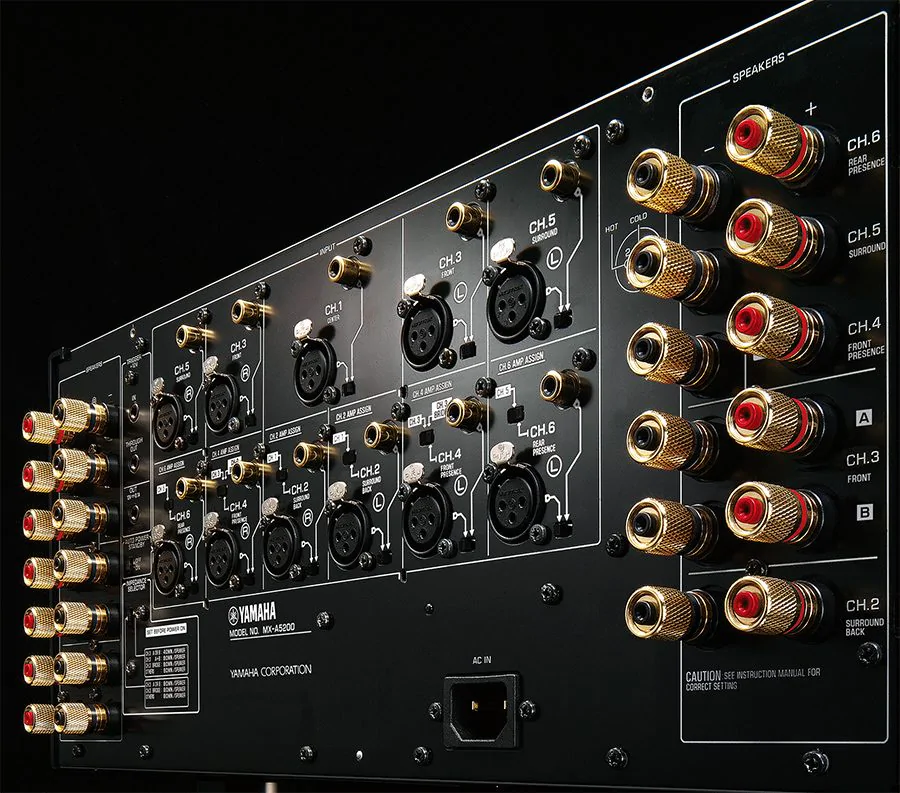

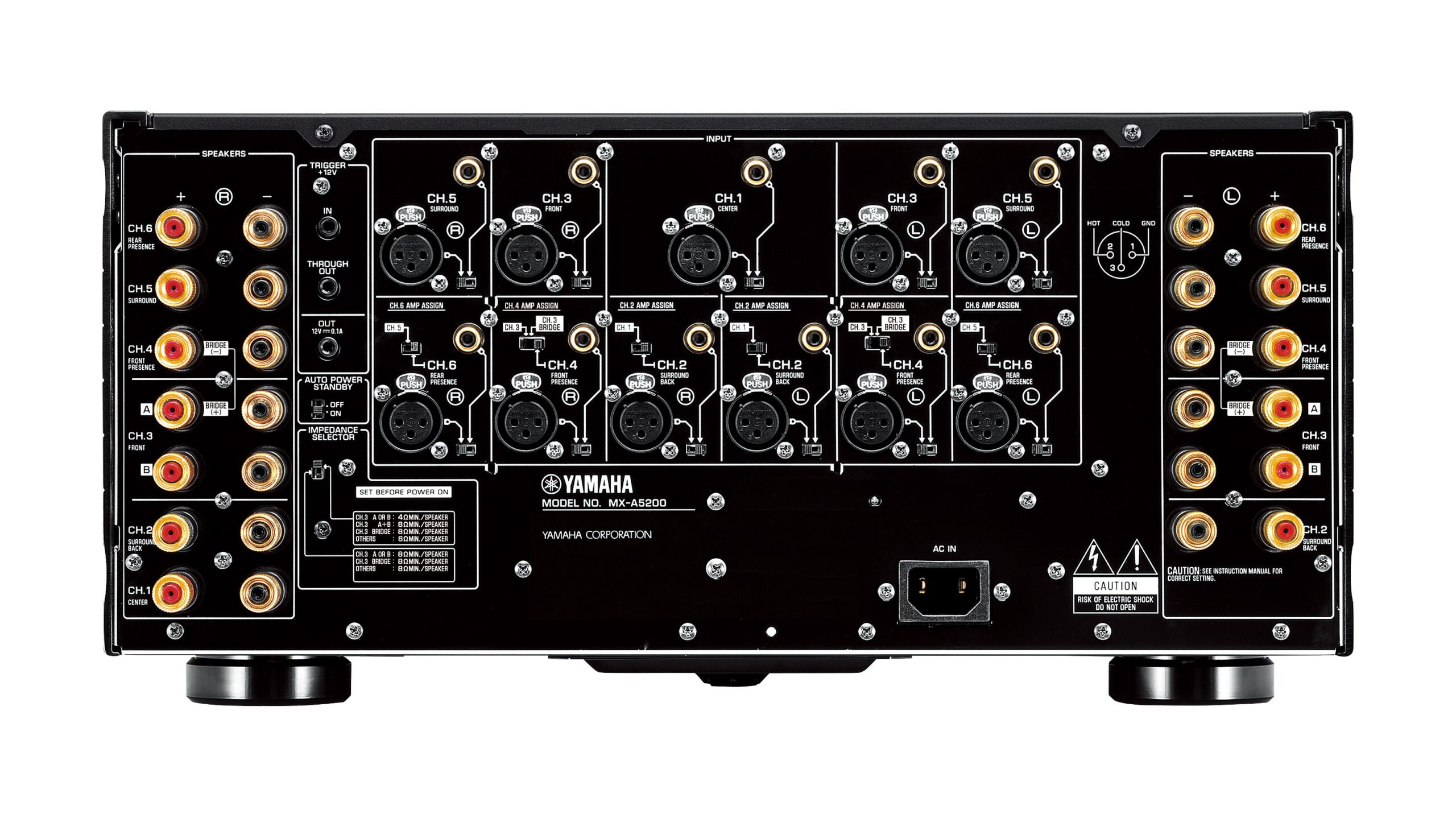

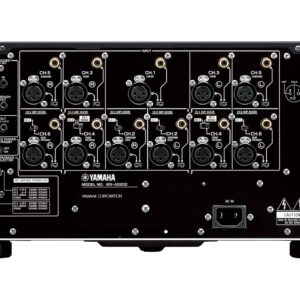

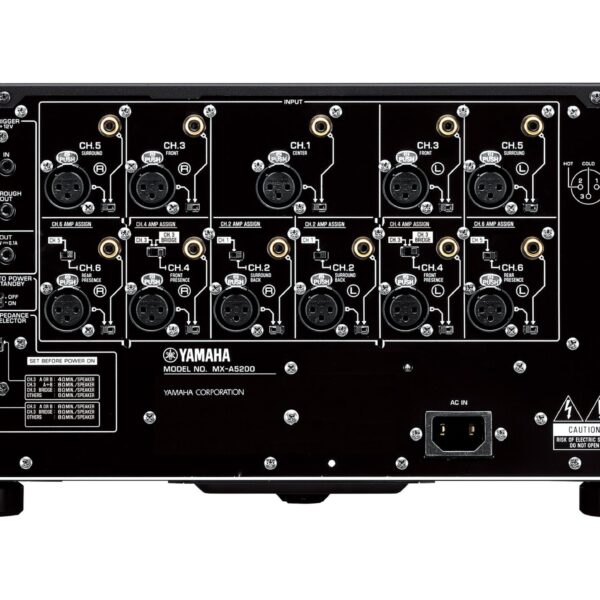

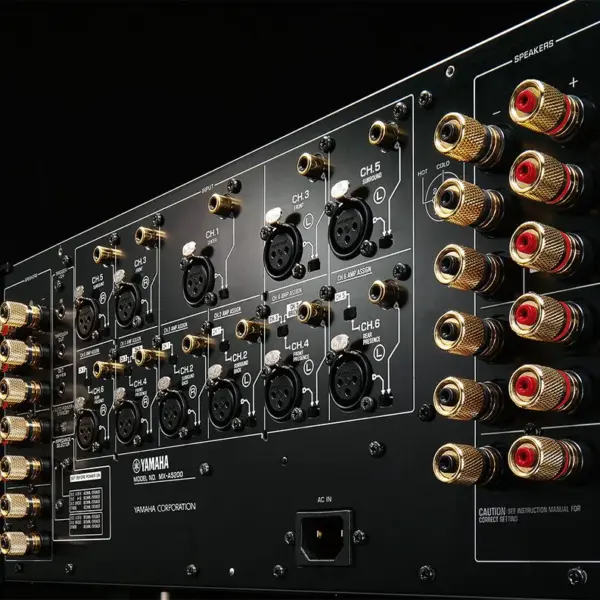

The rear of the MX-A52000 features high-quality, gold-plated terminals that are compatible with Y plugs (spade connectors) for optimal connections with speakers.

Product Specifications

Channel: 11
Rated Output Power (1kHz, 1ch driven): 290 W (4 ohm, 0.9% THD [European Model]), 230 W (6 ohm, 0.9% THD), 190 W (8 ohm, 0.9% THD)
Rated Output Power (1kHz, 2ch driven): 170 W (8 ohm, 0.9% THD)
Rated Output Power (1kHz, 2ch driven, bridged connection): 240 W (8 ohm, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 170 W (6 ohm, 0.06% THD), 150 W (8 ohm, 0.06% THD)
Rated Output Power (20Hz-20kHz, 2ch driven, bridged connection): 200 W (8 ohm, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 280 W (6 ohm, 10% THD), 230 W (8 ohm, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): 190 / 250 / 350 / 500 W

Audio Features:
A.R.T. Wedge, BTL connection, Bi-amp capability,
Digital ToP-ART / High Current Amplification: Three-stage Darlington Power Stage
Current Feedback Amplifier Circuit

Connectivity:

Analog Audio Input: XLR Balance: 11, RCA Unbalance: 11

Dimensions (W x H x D): 435 x 211 x 464 mm; 17-1/8” x 8-1/4” x 18-1/4”
Weight: 26.4 kg; 58.2 lbs.
