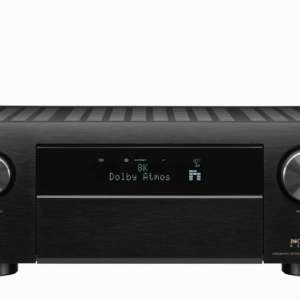

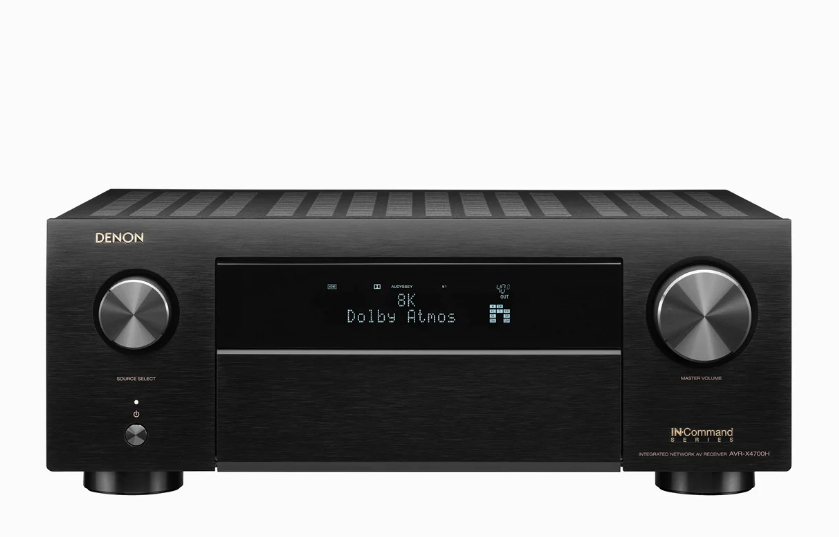

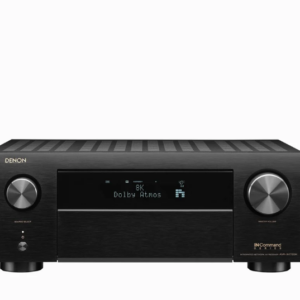

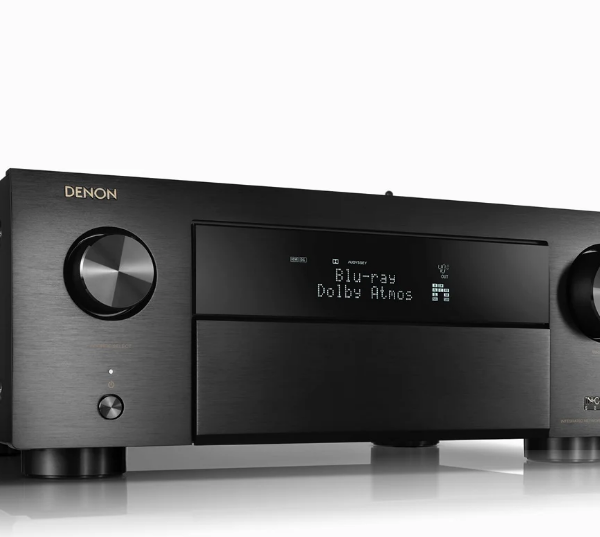

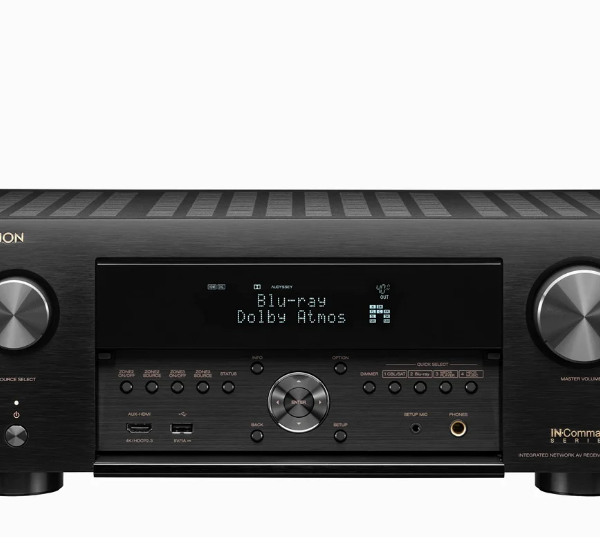

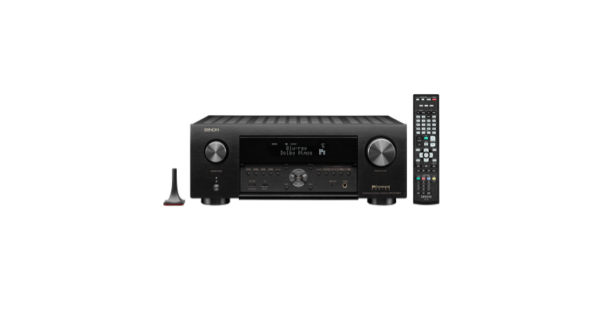

Denon AVR-X4700H

Description

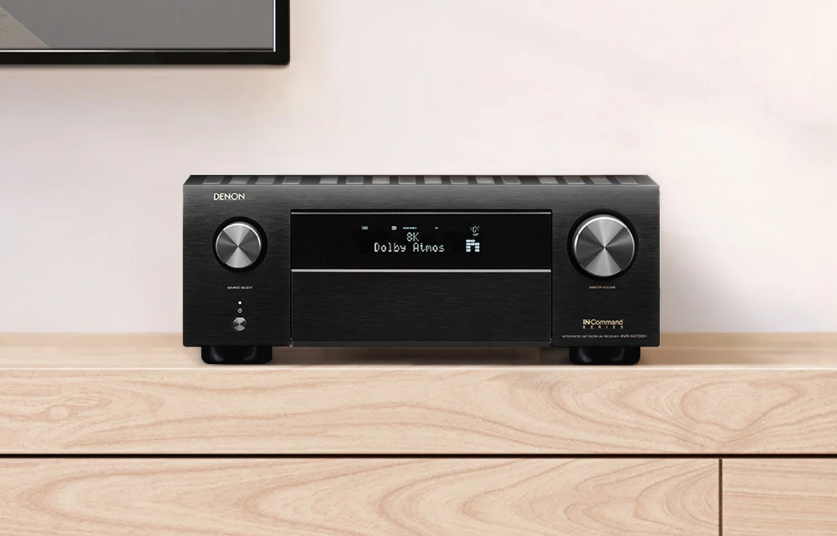

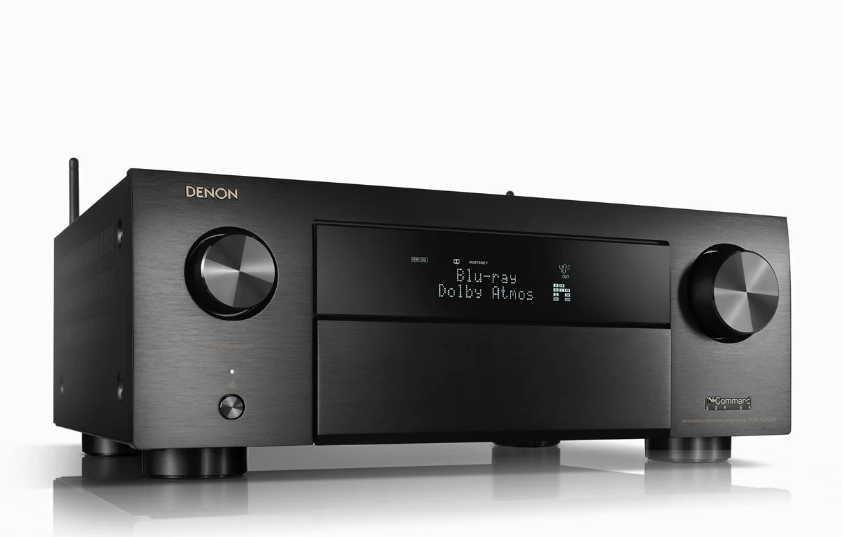

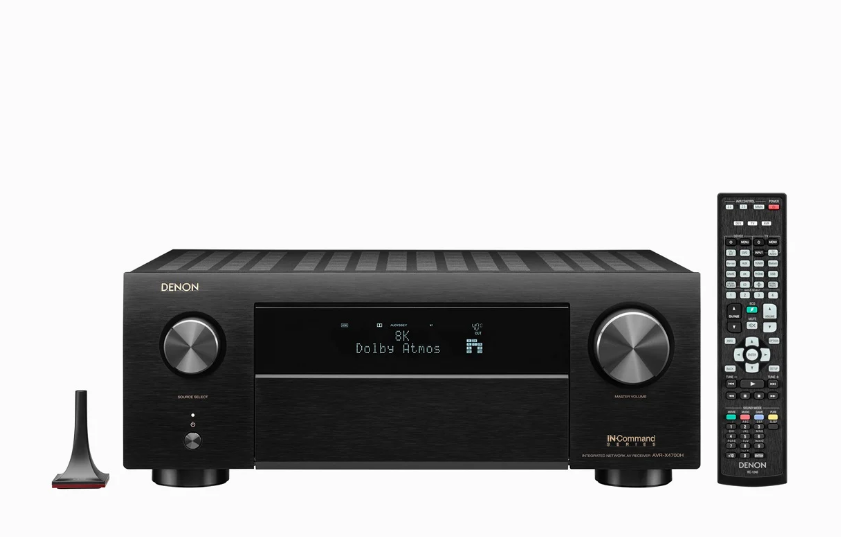

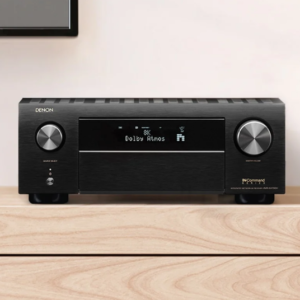

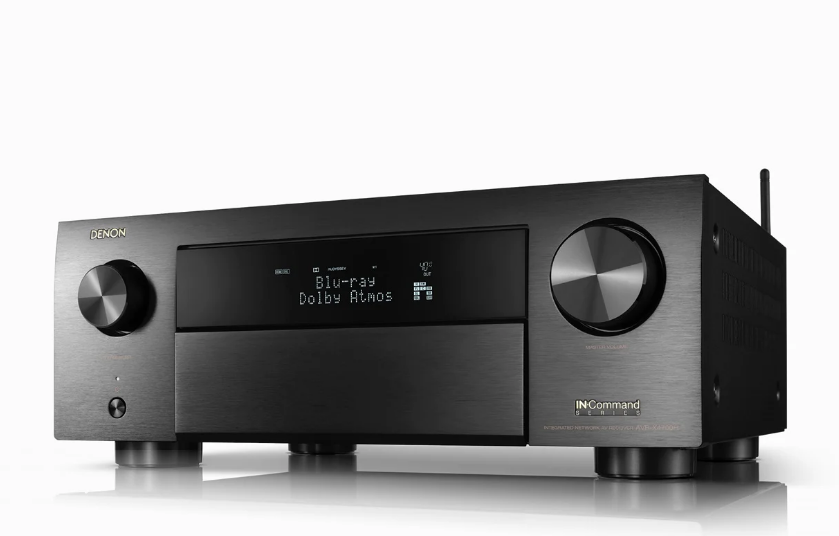

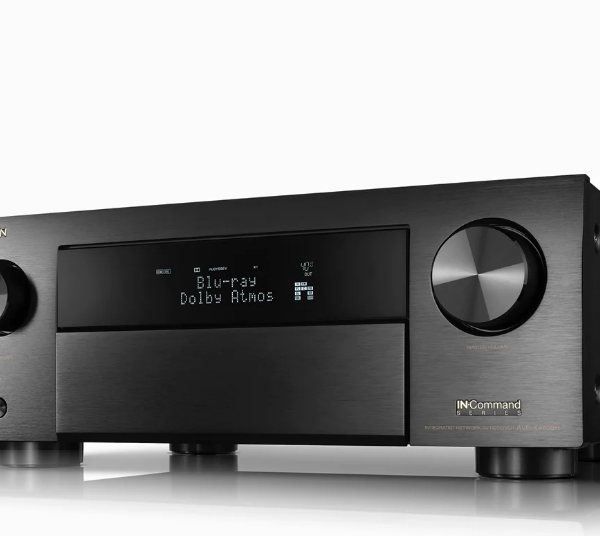

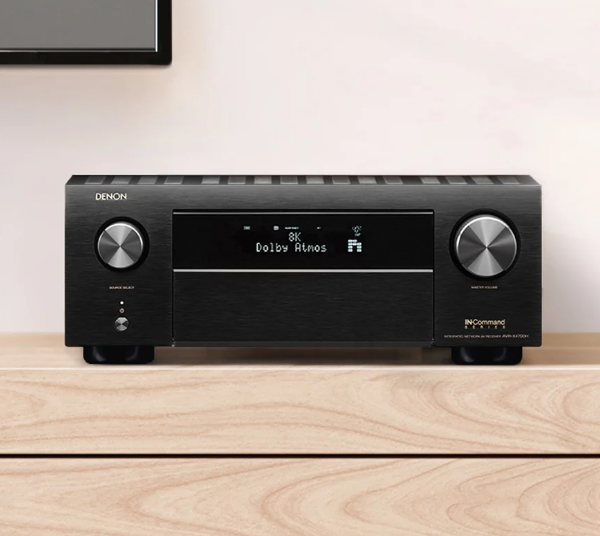

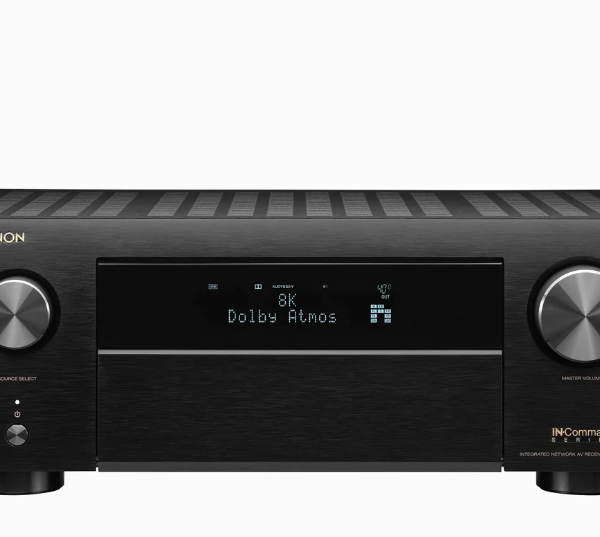

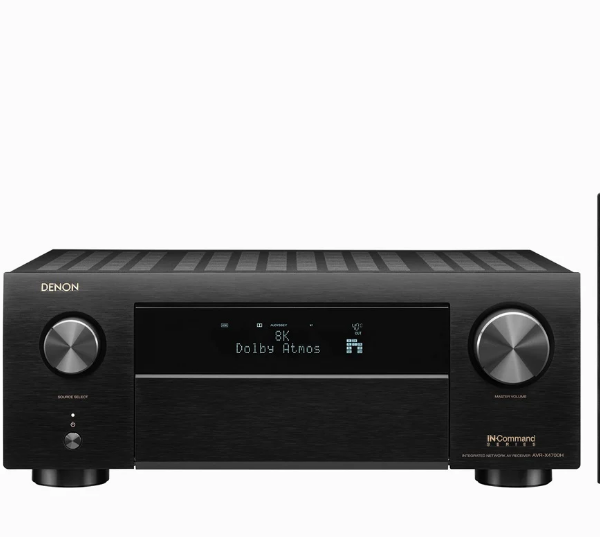

 Denon AVR-X4700H

9.2 channel 8K AV receiver with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced and Auro-3D®

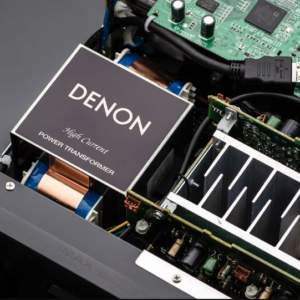

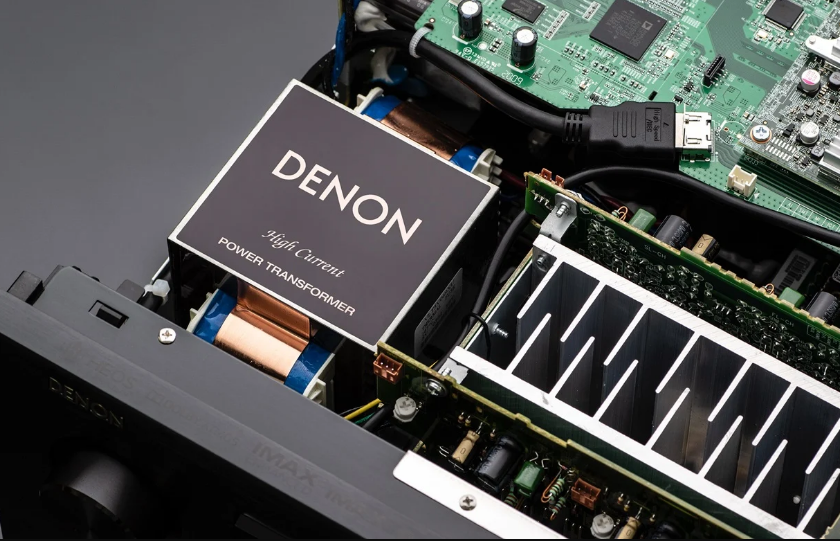

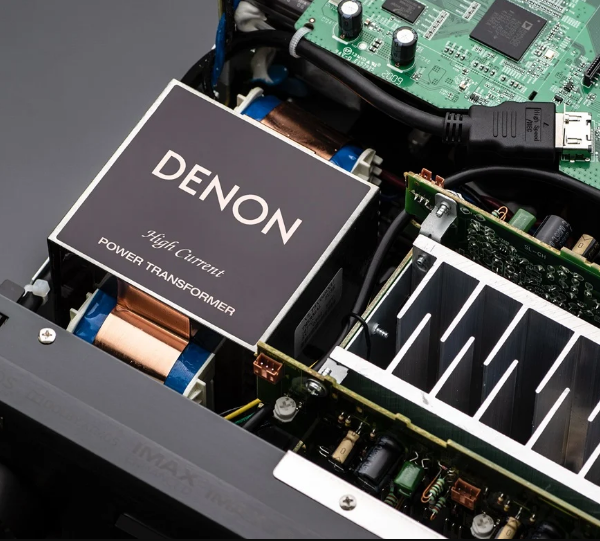

High-performance discrete 9-channel amplifier

Delivers a dynamic 125W per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2 ch. driven) to provide a trusted, precise and powerful Denon sound experience.

Full 8K/60Hz and 4K/120Hz support

With the latest HDMI support, enjoy 8K quality video from your 8K source devices. One 8K input and 2 outputs allow for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 8 HDMI inputs.

Enjoy your favorite 3D audio formats

Enjoy immersive, 3D audio from sources like Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual:X™ and Auro-3D®.

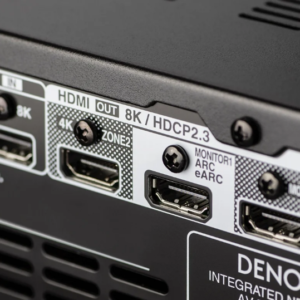

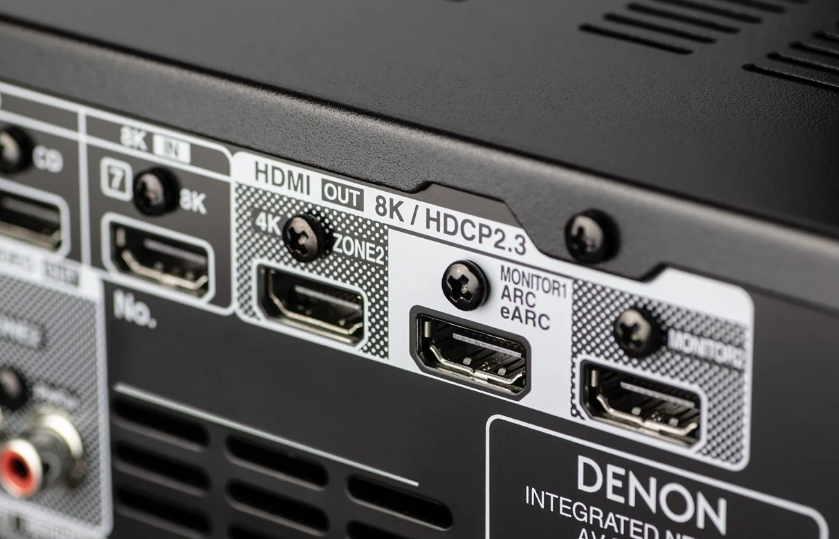

Enhanced Audio Return Channel (eARC) HDMI support

Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from your smart TV app to your AV receiver.

The latest in video compatibility

The latest HDR format support including HDR10, HDR10+ (new in 2020), HLG, Dolby Vision, as well as Dynamic HDR (New in 2020), to provide the greatest picture quality for brightness, clarity and contrast.

The next generation in movie immersion

With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear picture in the highest quality available.

The latest in gaming experiences

With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging with reduced lag.

Works with your favorite voice services

Use your voice to control the AVR-X4700H and wireless music services hands-free with Amazon Alexa, Google Assistant, Apple Siri, and Josh.ai.

Wireless streaming from the most popular music services

Enjoy all of your favorite music services like Spotify®, Pandora®, Amazon Music HD, TIDAL, SiriusXM, Deezer and more. The AVR-X4700H also lets you enjoy your music via AirPlay 2, letting you stream your favorite tracks from Apple Music.

HEOS® Built-in wireless multi-room music streaming technology

Listen from any room for a connected, whole-home audio experience. The AVR-X4700H also works with the newly introduced Denon Home speakers to let you enjoy a whole-home audio experience



Specifications:

Number of Power Amps: 9

Power Output:  235 watts per channel (6 ohms, 1 kHz, THD: 10%, 1 ch driven),
200 watts per channel (6 ohms, 1 kHz, THD: 1%, 1 ch driven),
165 watts per channel (6 ohms, 1 kHz, THD: 0.7%, 2 ch driven),
125 watts per channel (8 ohms, 20Hz–20kHz, THD: 0.05%, 2 ch driven.

Speaker Impedance: 4-16Ω/ohms

Preamplifier Section:

Input Sensitivity/ Impedance: 200 mV/47k kohms
Frequency Response: 10Hz–100kHz – +1, -3 dB (Direct Mode)
S/N Ratio: 102 dB (IHF-A weighted, Direct Mode)

FM Section:
Tuning Frequency Range: 87.5 – 107.9 MHz
AM Section:
Tuning Frequency Range: 520–1710 kHz
General Specs :
Power Supply: 120V/60 Hz
Power Consumption: 710W (Standby 0.1W, CEC standby 0.5W)
Power Consumption (No Sound): 65W (ECO Mode On),110W (ECO Mode Off).
Maximum Dimensions (WxDxH):
Antenna:Horizontal (in): 17.1 x 15.4 x 6.6
Antenna:Vertical (in): 17.1 x 15.3 x 9.3
w/o Antenna: (in): 17.1 x 14.9 x 6.6
Carton Dimensions (Packaging) (WxDxH) (in): 21.2 x 19.1 x 10.3
Weight (lbs): 30.2
Weight (Packaging) (lbs): 36.2

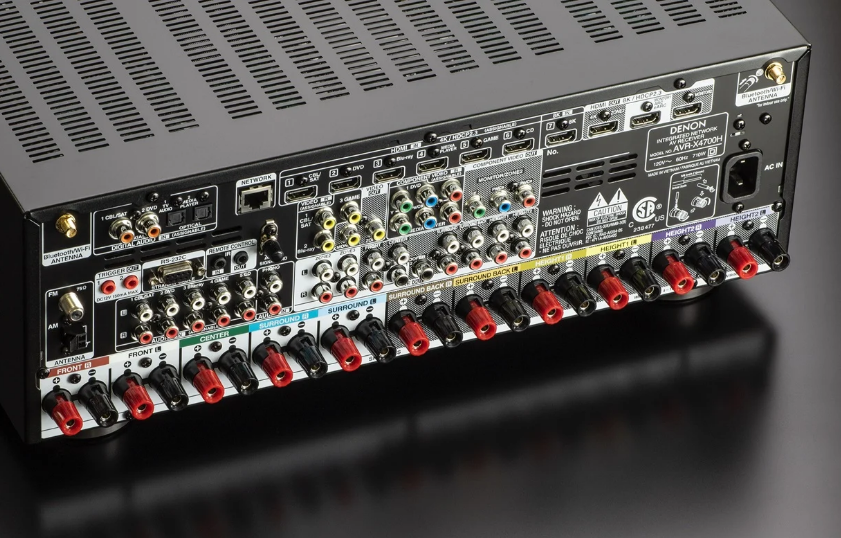

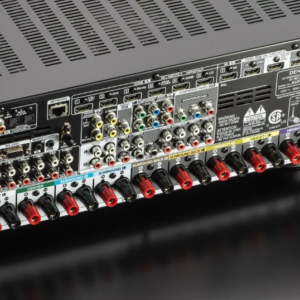

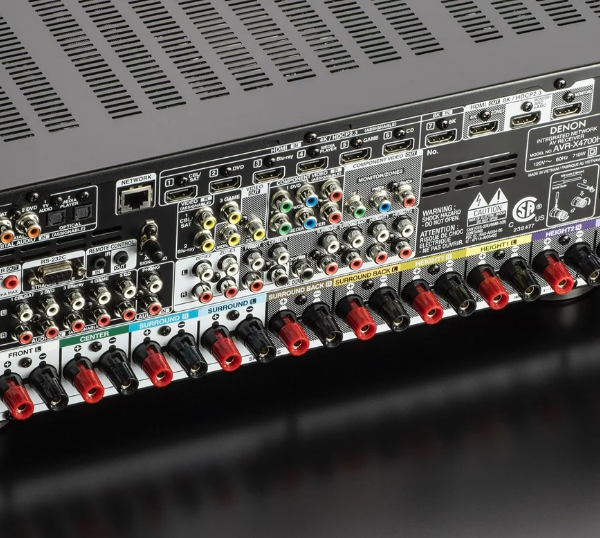

Ports:

Inputs:

HDMI (Front + 1): x7 + 1

8K HDMI: x2
Component (Video): x2
Composite (Video): x3
Phono: x1
Analog Audio: x5
Digital Coaxial: x2
Digital Optical: x2
USB Front: x1

Outputs:

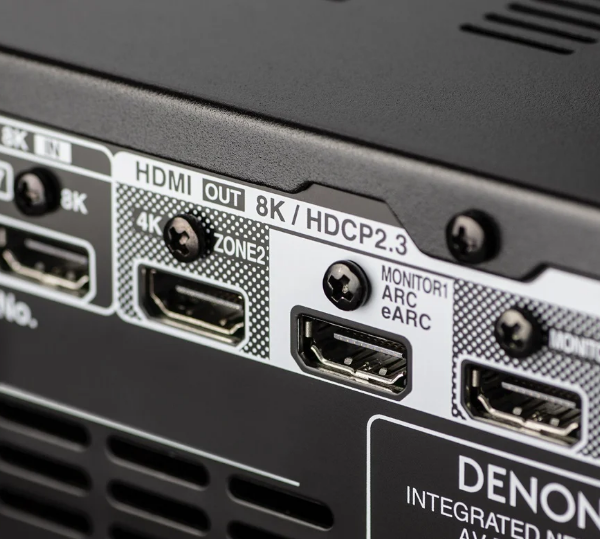

HDMI Monitor (eARC): x3
8K HDMI: x2
Component (Video): x1
Composite Monitor: x2
Audio Pre-out (SW): 11.2 ch
Zone 2 (pre-out and speaker assignable): x3
Headphones: x1

Other:

Ethernet: x1
Microphone Port: x1
FM/AM Tuner Antenna: x1
