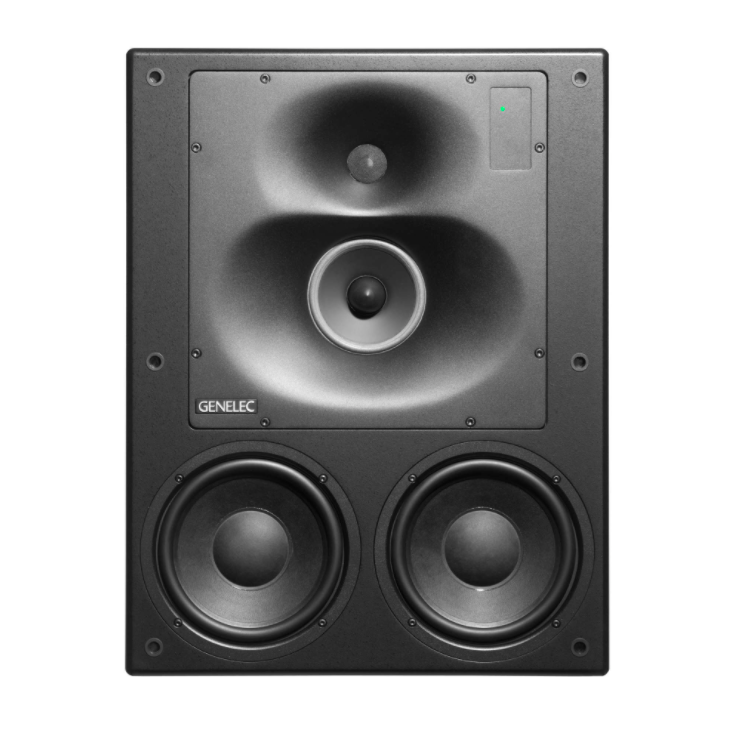

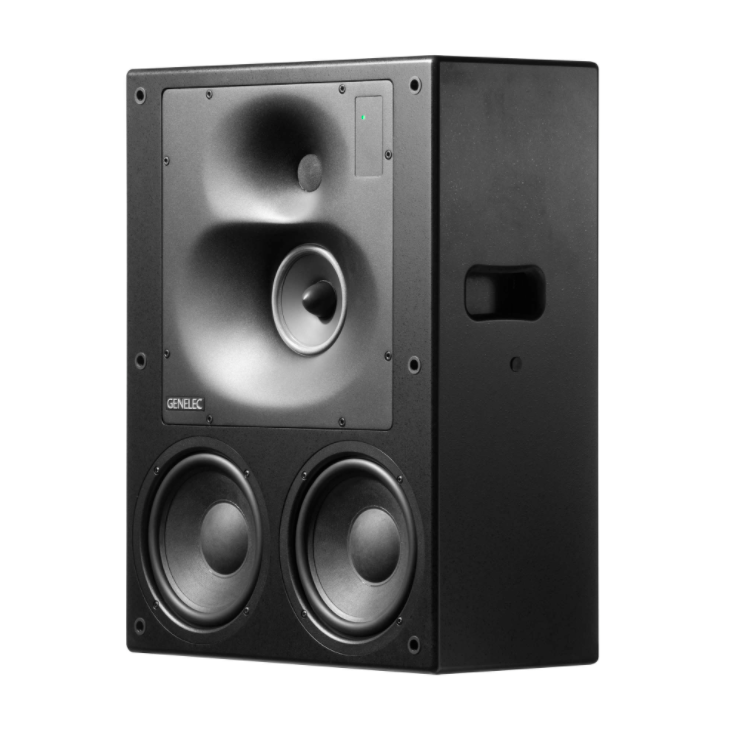

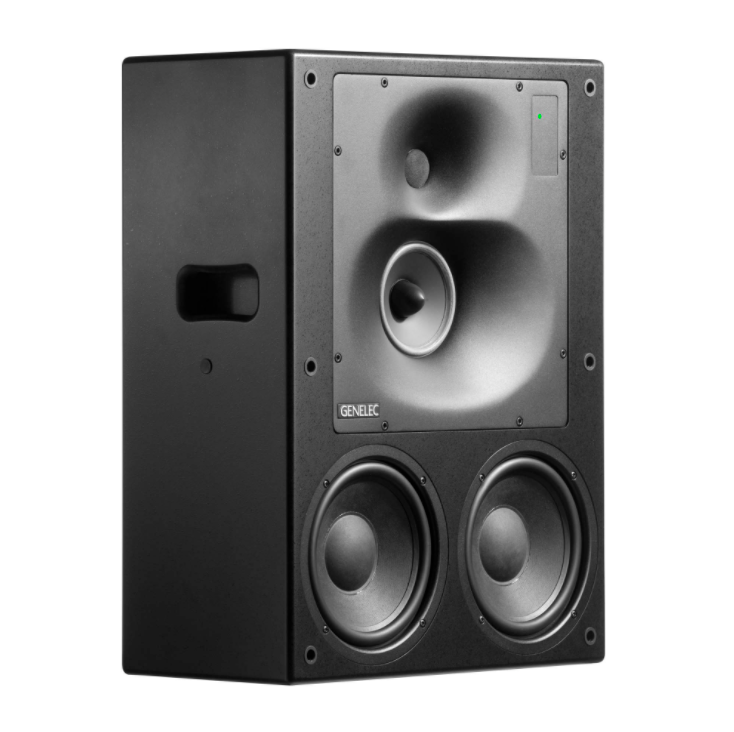

Genelec 1238DF SAM™ Active Monitor
The super-compact dimensions of the 1238DF allow it to partner with an accompanying subwoofer to deliver main monitor performance in rooms where space is at a real premium.
Neutral and uncoloured

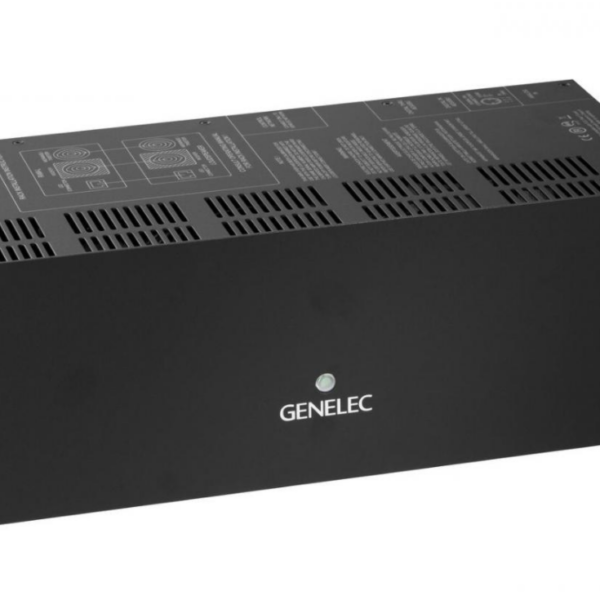

Ideal for music recording, post-production, broadcast and mastering, the 1238DF is the perfect blend of adaptable amplification, contemporary technology and classic design. With its controlled directivity, it offers all the neutrality and uncoloured performance of a large format Genelec monitor – but with a remote rack-mounting RAM-L amplification module that enables its amazingly modest and slimline cabinet size.
Configure, calibrate and control
The 1238DF is designed to partner with a complementary Genelec smart subwoofer, and integrates closely with our GLM software via which the whole system can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. From simple stereo to complex immersive formats, the 1238DF and GLM combine seamlessly to help you produce mixes with exceptional translation to other rooms and systems.
Maximum sound pressure level: 117 dB
Free field frequency response: 50 Hz – 20 kHz (-6 dB)
Accuracy of frequency response: ± 2 dB (57 Hz – 20 kHz)
Drivers: Bass 2 x Ø 210 mm, 89/32 inch + Midrange Ø 125 mm, 429/32 inch + Treble Ø 25 mm, 1 inch metal dome + DCW™
Amplifier power per channel: 2 x 500 W Bass + 250 W Midrange (both Class D) + 200 W Treble (Class AB)
Loudspeaker H x W x D: 610 x 470 x 257 mm, 24 x 181/2 x 101/8 inch

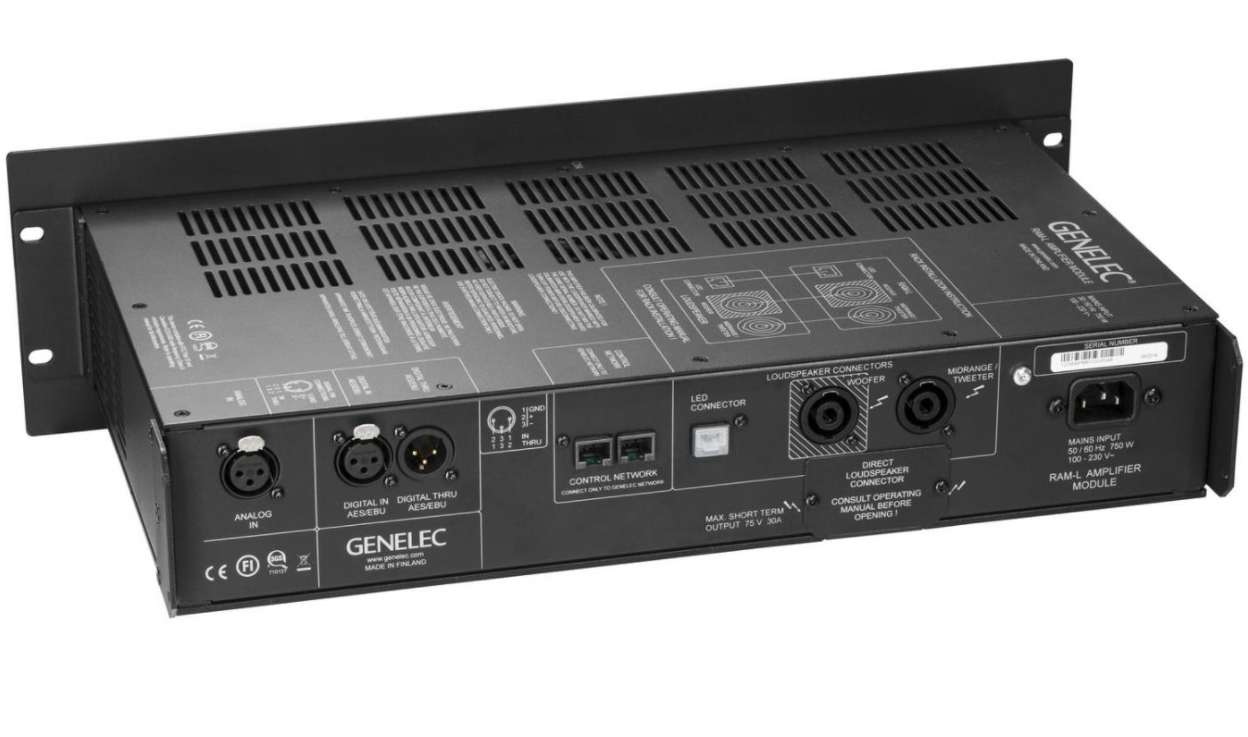

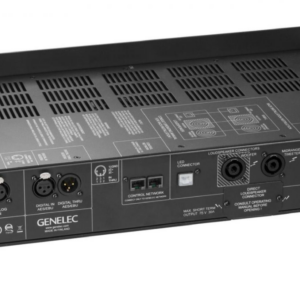

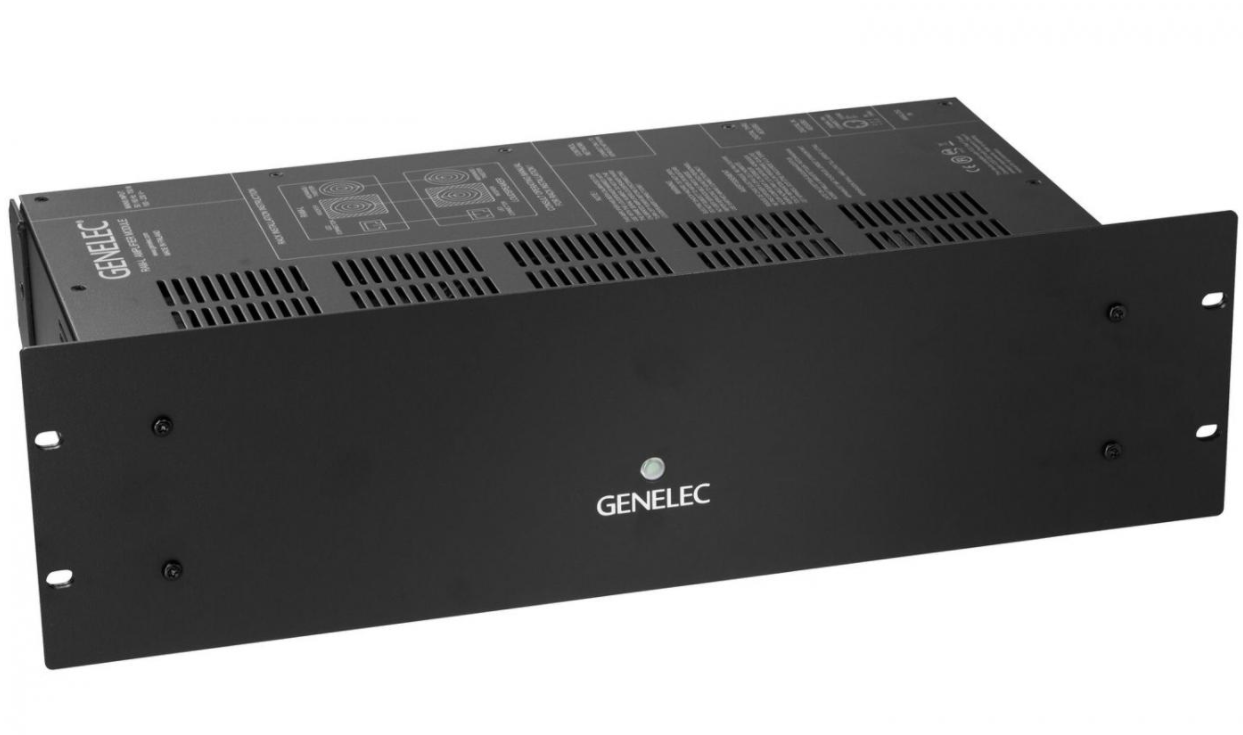

RAM L size: 3U / 19 inch
Loudspeaker weight: 36.0 kg / 79.4 lb
RAM L weight: 6.0 kg / 13.2 lb

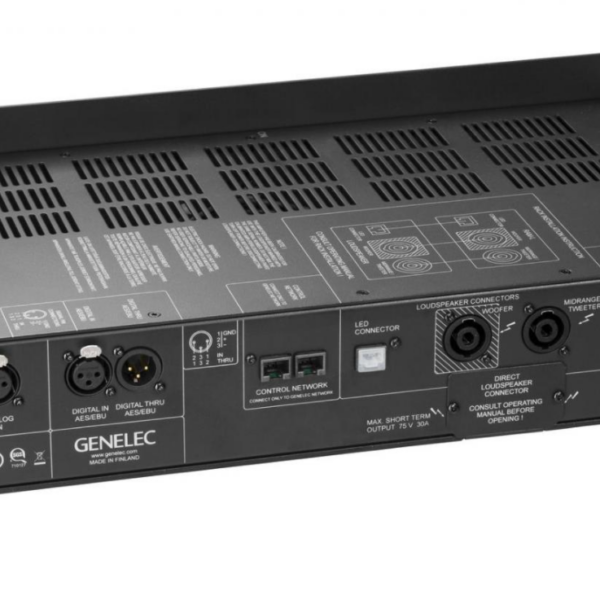

Audio Connectors: XLR analogue input, XLR digital AES/EBU in- and output, 2 x RJ45 GLM Network
Management and control system: GLM™
