Description

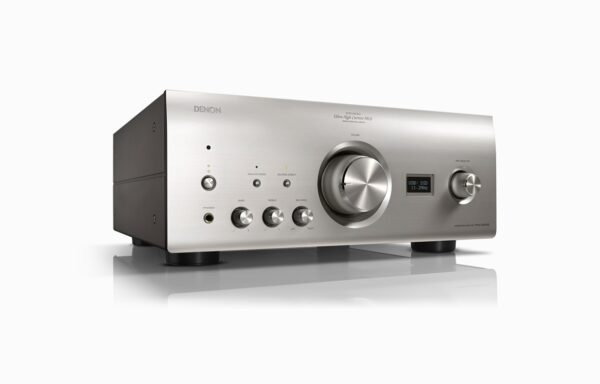

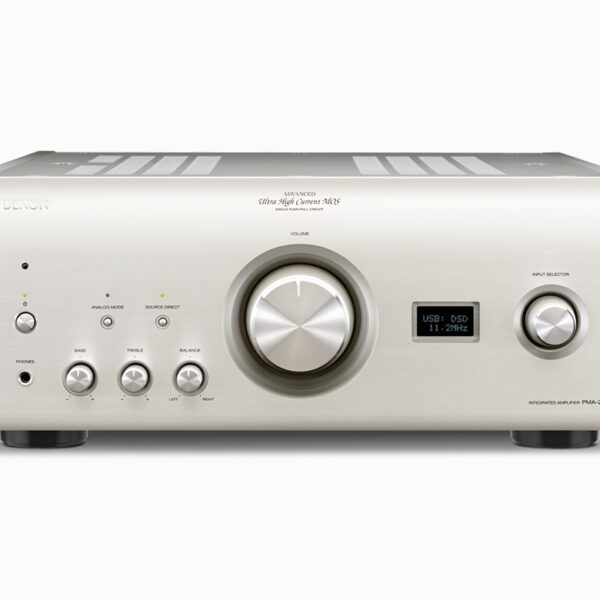

Denon PMA-2500NE
Overview
The Denon is one of the rare audio brands that continued to actively develop Hi-Fi components and accumulate, refine, and pass down Hi-Fi audio technologies. The 2500NE series, designed for today’s age, has been developed by both veteran engineers and talented young engineers who have inherited the Denon technologies and expertise that have been cultivated over many years and decades. And the performance of the PMA-2500NE goes well beyond that of Denon’s previous PMA-2000 series. With its ultimate built-quality, unique Denon technologies and state-of-the-art connectivity, the PMA-2500NE truly is a masterpiece of sound technology. Thanks to the rear USB-B input and embedded high quality D/A converter, the PMA plays high resolution files up to 384kHz/32bit and DSD up to 11.2MHz from a computer in impeccable sonic quality.
Advanced UHC-MOS Single Push-Pull Circuit:
To achieve impeccable balance between delicate details and vigor in sound, the PMA-2500NE employs Ultra High Current MOS (UHC-MOS) FETs, capable of producing ample current in a single push-pull configuration which deliver superior linearity in the output stage throughout the sonic range from musical details to robust current. The technique of driving multiple amplifier devices in parallel to secure robust current has solved the problem of muddiness in sound caused by uneven performance among the devices. And to achieve musical expression filled with the delicate nuances of sound.
High-gain amp construction:
The amplifier circuitry has been changed from the conventional two-stage configuration to a high-gain power amp in a single-stage configuration for a more direct signal path. A highly pure sound has been made possible by reducing the number of devices through which audio signals pass and shortening signal paths to an absolute minimum. The protection circuitry for the power amp output stage has also been considerably improved.
Features:
Channels:2
Digital in: USB-B, optical, coaxial,
Sample Rate digital In:192 kHz / 24-bit
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6: <=11.2
DAC chip: PCM1795
Asynchronous mode rear USB
Bit-perfect transmission
AL 32 Processing: Advanced AL32 Plus
DAC Master Clock Design
Streaming audio from PC
UHC-MOS single push pull circuit: (Advanced)
LC mounted twin transformer
Wide range amplifier
High current dynamic power supply
Power amp discrete construction
Micro processor auto off
Balance, Bass, Treble
Solid Heat Sinks
Low Noise OELD display
Source Direct
Power Amp direct

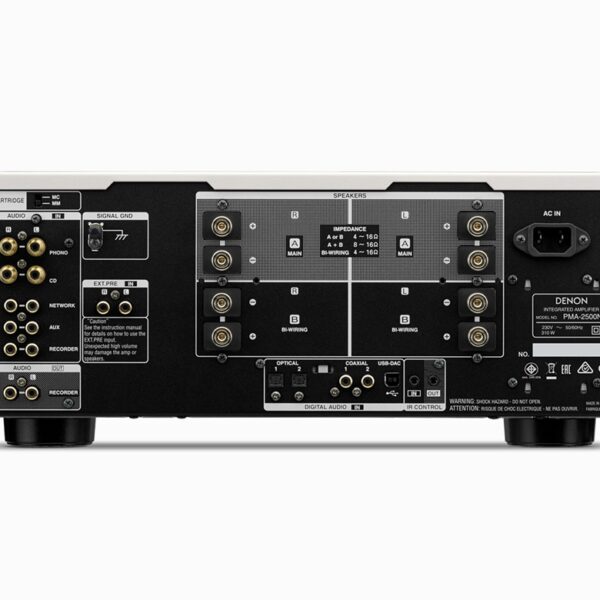

Inputs/Outputs:
Audio Inputs: 5
Digital in: USB-B, optical, coaxial
Phono Input: MM / MC
Audio Outputs: 1
Power Amp Direct IN
Gold plated Cinch
Number of terminals: 2
Specifications:
Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%): 80 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%): 160 W
Total Harmonic Distortion: 0.01%
Input Sensitivity: MM: 2.5 mV / 47k ohm
Signal to Noise Ratio: MM/MC: 89 dB / 74 dB
Input Sensitivity: High level: 135 mV / 47k ohms
Signal to Noise Ratio: High level: 110dB
Treble Control: ± 8 dB at 10 kHz
Bass Control: ± 8 dB at 100 Hz
