Description

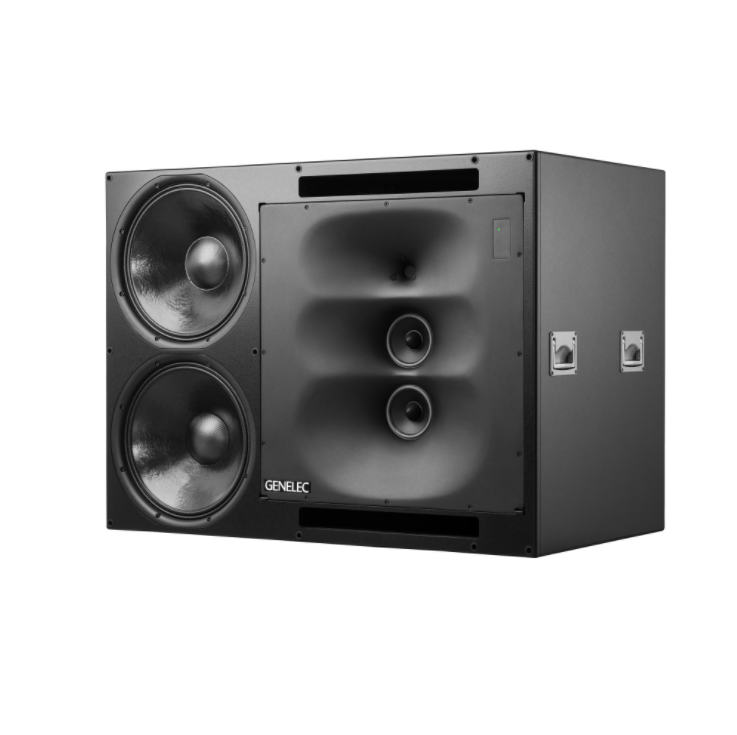

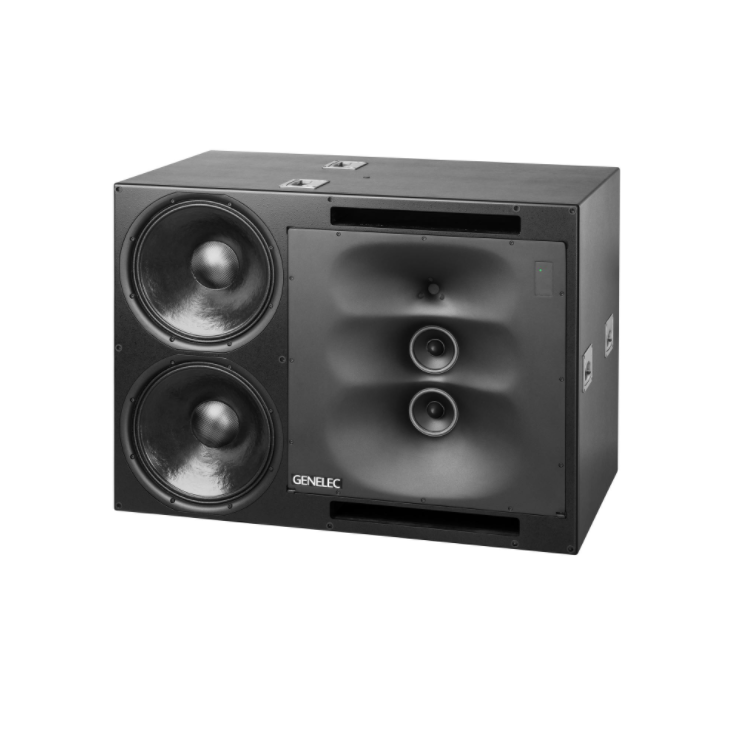

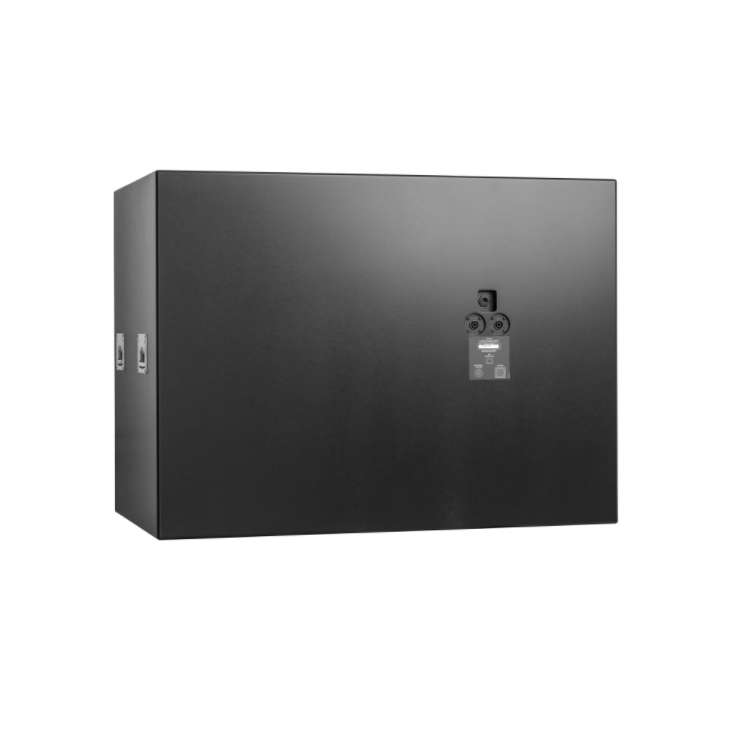

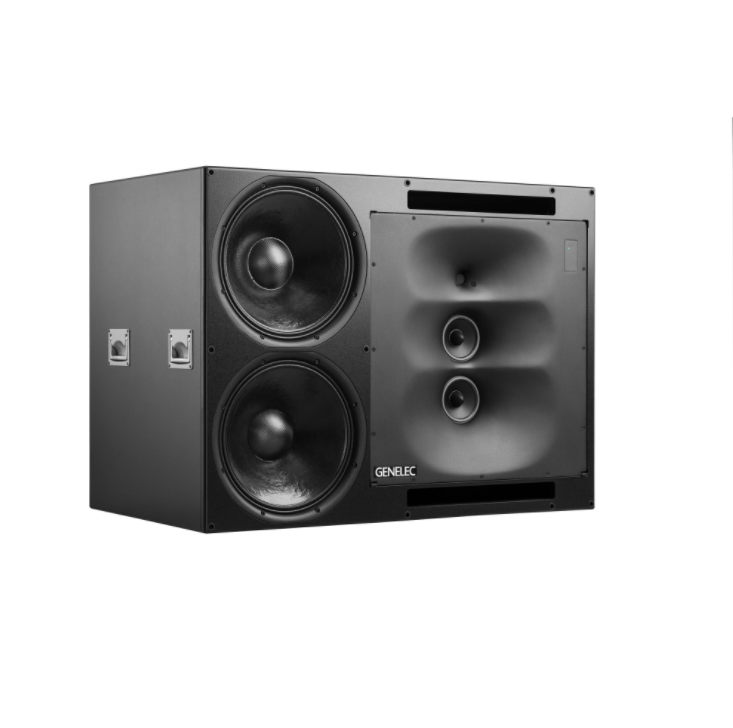

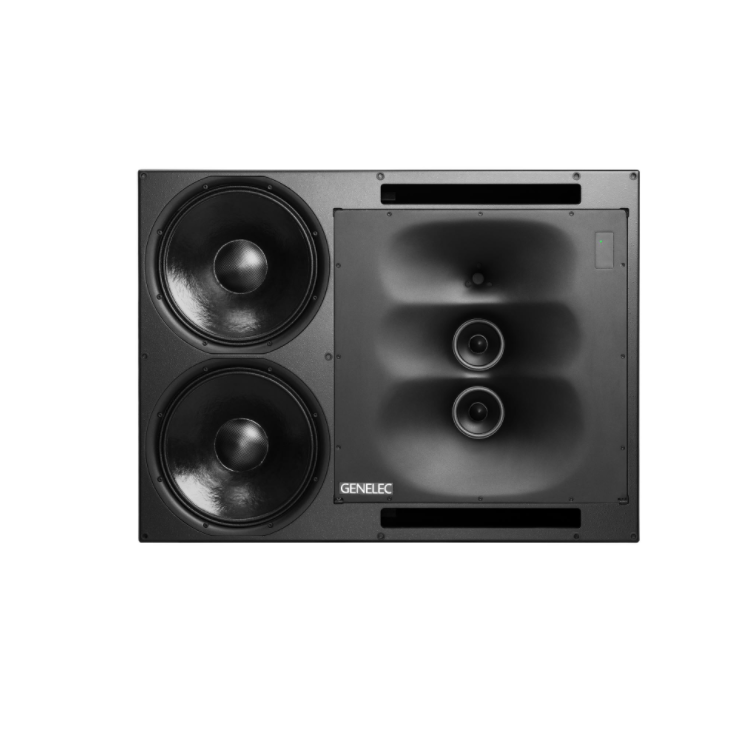

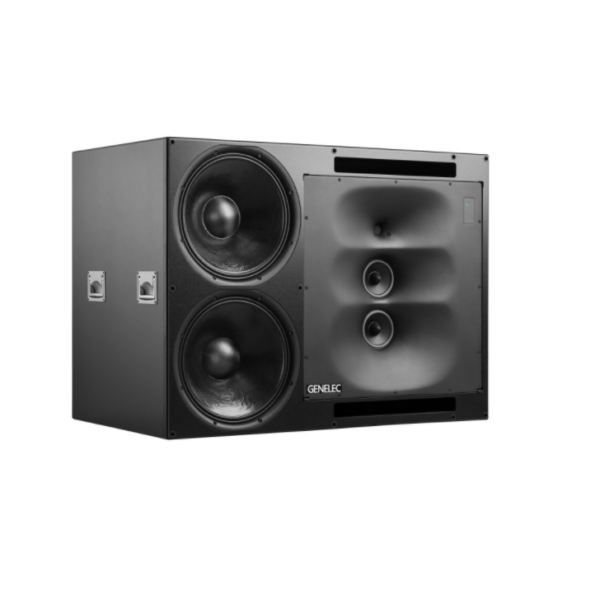

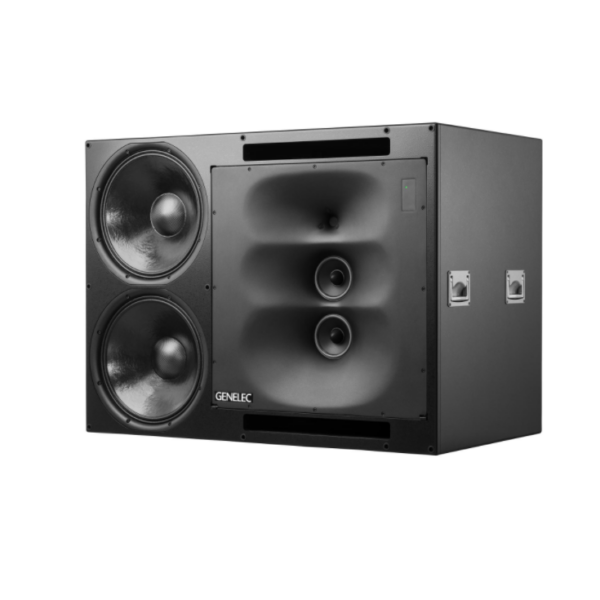

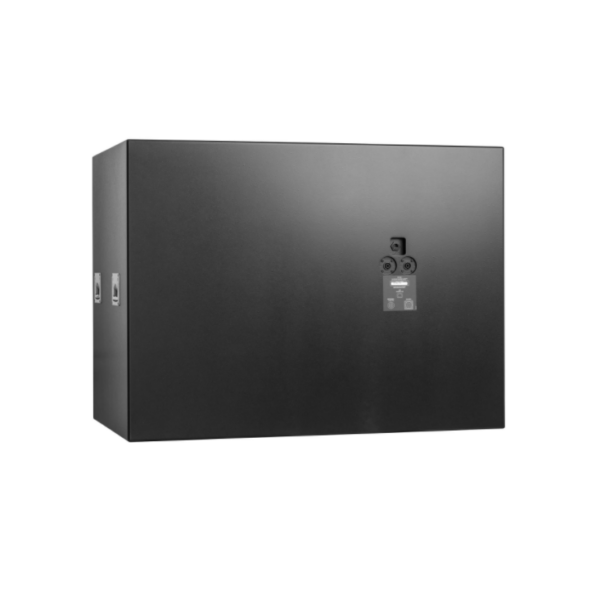

Genelec 1235A SAM™ Active Monitor

The 1235A brings the sound and heritage of the iconic 1035 into the modern recording age. High SPL capability and precise imaging come together in a main monitor that adapts to your room.

Classic heritage

The original 1035 became the hallmark of prestigious studios around the world who demanded a wall-mountable full-range monitor that could deliver true reference performance at high SPLs and over long listening distances. Now, with 96 kHz processing and all the power of our Smart Active Monitoring technology, the 1235A is available both complete or as a retro-fittable upgrade kit for owners of 1035A or B models.

Cutting edge performance

With outstanding on and off-axis response and superb directivity, the 1235A delivers a very wide and stable sweet spot that can be trusted by multiple listeners within a room. And through its integration with GLM software, the 1235A can be configured, controlled and calibrated for any type of acoustic environment, providing a truly optimised listening experience – and mixes that translate perfectly to other rooms and systems.

Specifications:

Maximum sound pressure level: 130 dB

Free field frequency response: 29 Hz – 26 kHz (-6 dB)

Accuracy of frequency response: ± 2 dB (31 Hz – 20 kHz)

Drivers: Bass 2 x Ø 380 mm, 1431/32 inch + Midrange 2 x Ø 125 mm, 429/32 inch + Treble Ø 25 mm, 1 inch compression + DCW™

Amplifier power per channel: 2 x 1000 W Bass + 2 x 400 W Midrange + 250 W Treble (all Class D)

Loudspeaker H x W x D: 820 x 1105 x 650 mm, 329/32 x 431/2 x 2519/32 inch

RAM XL size: 3U / 19 inch

Loudspeaker weight: 164.0 kg / 361.6 lb

RAM XL weight: 11.2 kg / 24.7 lb

Audio Connectors: XLR analogue input, XLR digital AES/EBU in- and output, RJ45 GLM Network

Management and control system: GLM™
